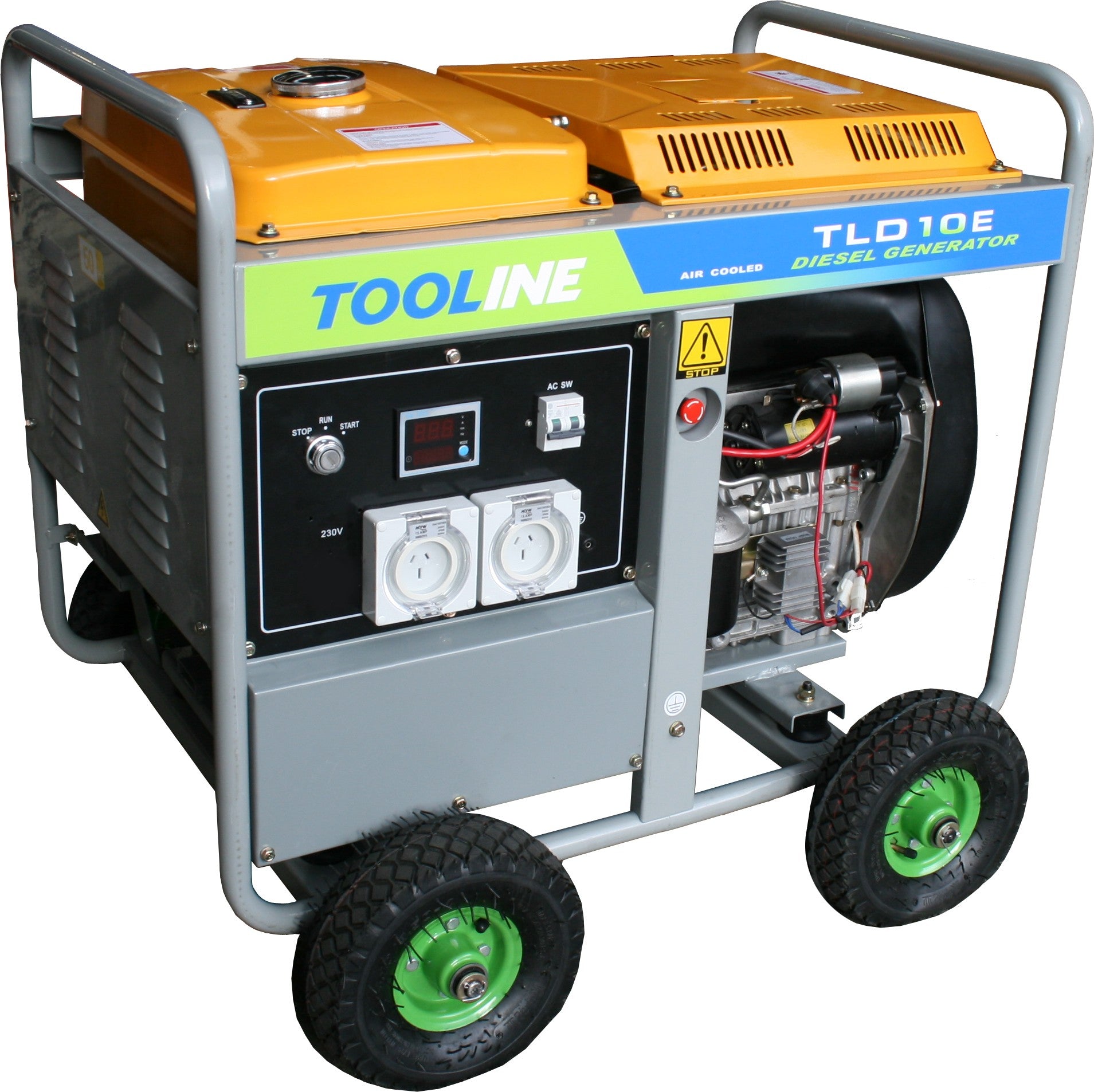

Tooline TLD10E Diesel Generator

SKU: WH465

Tax included. Shipping calculated at checkout.

This item is temporary out of stock

Product Description:

Tooline TLD10E Diesel Generator

Rated frequency (Hz) 50
Rated voltage (V) 230
Rated output (kW) 8.0
Max output (kW) 9.0
Rated current (A) 34.8
Rated rotation speed (rpm) 3000

Model TLD10E
Phase No. Single
Power factor (COS) 1.0
Insulation class F
Exciting mode AVR
Sockets 2 x 15 AMP

Engine model KM 290 F
Engine type Twin cylinder, vertical 4-stroke, diesel direct injection
Cooling system Air
Displacement (ml) 954
A compression ratio of 19:1
Bore x Stroke (mm) 90 x 75
Rated output power 17Kw, 23.1 Hp
Max torque (Nm) 55 / 2100 rpm
Starting system Electric
Lubricating oil SAE 15W 40
Oil capacity (L) 3.15
Fuel type Diesel
Battery 12V, 45 Ah

Noise level (dB@7m) 92
Structure type Open frame
Fuel tank capacity (L) 25
Continuous running time (g/kwh��� 200
Overall dimension (L x W x H) (mm) 900 x 600 x 810 mm
Net weight (kg) 208
