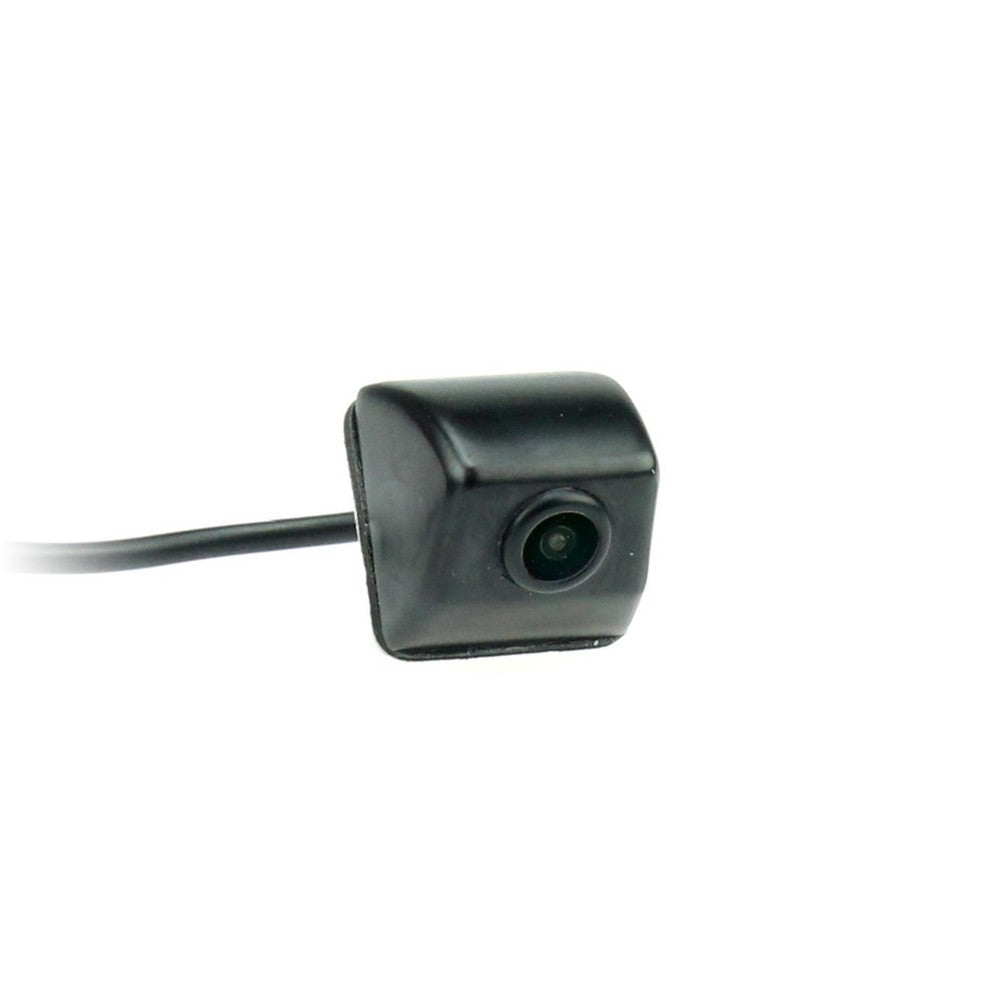

Reverse Camera Univerasl Fixed Angle Drill-To-Mount (Pal)

Description

The CAM-24 is a universal surface fixed angle mounted reversing camera, compatible with a wide range of vehicles both cars and vans. Minimal illumination is required for the camera to operate with a 170 degree viewing angle. This easy-fit rear view camera’s 1099 HD CCD, 480 TV Lines and 976x496pix resolution allow for a full-colour high-res image display. The CAM-24 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.

Product Specifications

• Image Sensor: 1099 HD-CCD

• TV Lines: 560

• Resolution: 976 x 496

• Minimum Illumination: 0.1 Lux

• TV System: NTSC

• Waterproof Rating: IP68

• Horizontal Angle: 170 Degrees

• Vertical Angle: 120 Degrees

• Parking Lines: Yes (Removable)

• Adjustable Image: Yes (Mirror/Normal)

• Enhanced Performance In Low Light: Yes

• Video Output: 1.0V p-p 75ohm

• Operating Voltage: 12V DC (Negative Ground)

• Current Consumption: 145mA @ 13.8V

• Operating Temperature: -20 Degrees C to +70 Degrees C
