Reverse Camera Ford Ranger / Mazda Bt50 2012 - 2020 (Tailgate Handle Replacement) (Black)
.
Regular price
$389.95 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
Description

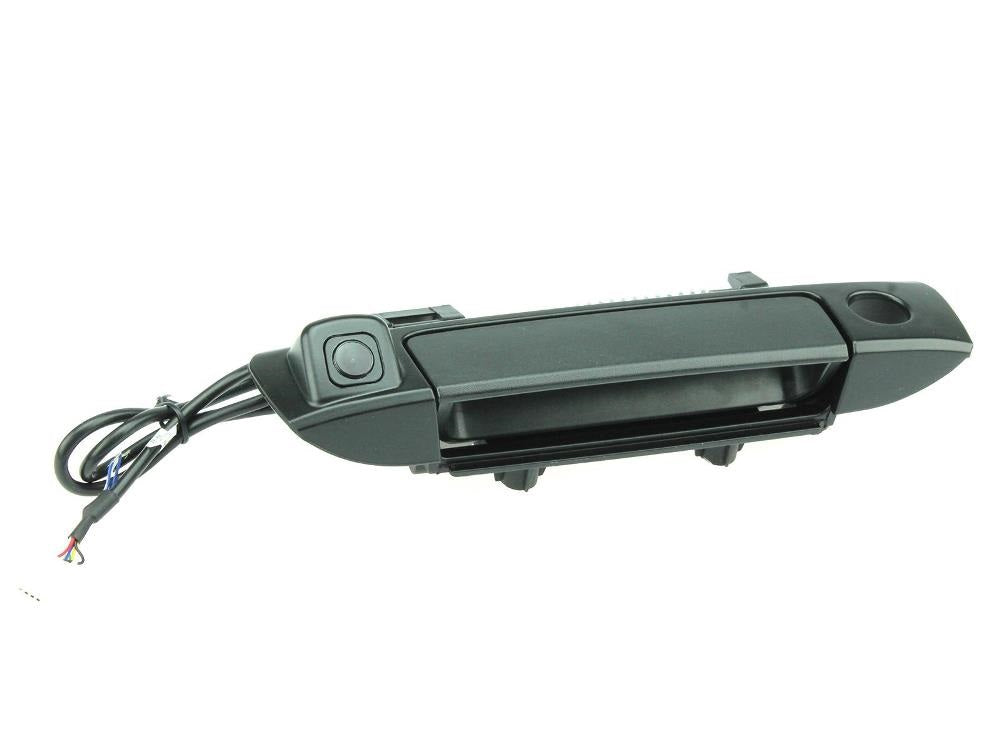

- The CAM-FD9 is a Replacement Boot Handle Reverse Camera for the 2011 to 2020 Ford Ranger. The unit replaces the vehicles original boot handle with a camera built into the housing. The CAM-FD9 features a CMOS image sensor, 640 x 480 resolution and 170 degree viewing angle, this combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Product Specifications
-
CMOS Image Sensor
-
640 x 480 Resolution
-
Max Relative Aperture: 2.2 (+/- 5%)
-
Fixed Iris
-
Lens Construction: 3 elements + 1 IR filter
-
Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
-
Hard/Anti-Fog/IR-Cut Coating
-
NTSC/PAL Compatible
-
Video Output: 1.0V p-p 75ohm
-
Minimum Illumination: 0.1 Lux
-
Parking Lines Displayed
-
Operating Voltage: 12V DC (Negative Ground)
-
Current Consumption: 33mA @ 13.8V
-
Operating Temperature: -20 Degrees C to +70 Degrees C
-
Enhanced Performance In Low Light
- Waterproof Rating: IP68
Applications
- Ford Ranger 2011 - 2020
