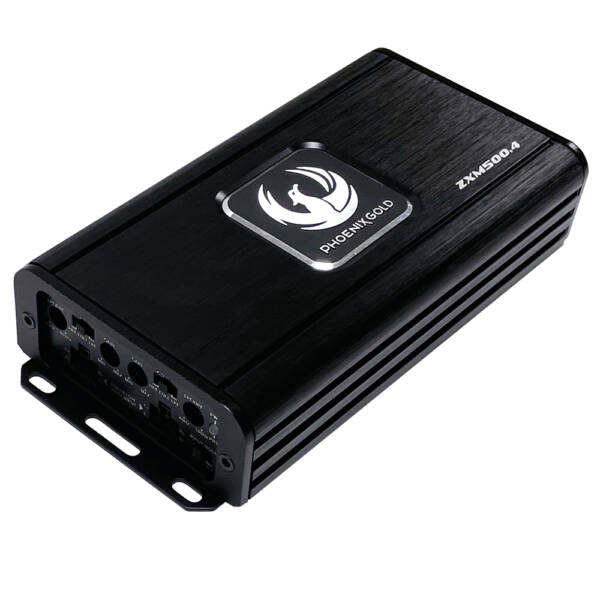

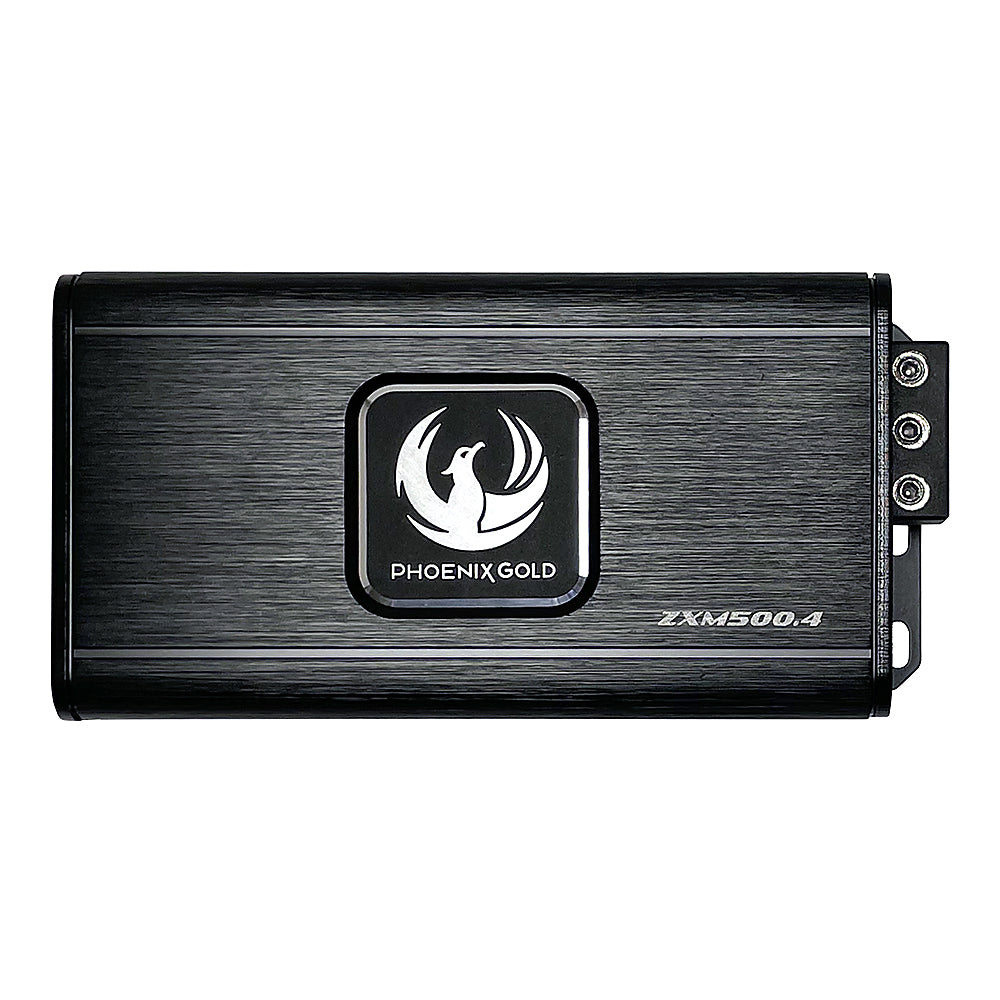

Phoenix Gold Zxm500.4 4ch Mini Amp 4 X 80w Rms 4 Ohm (Class D)
Buy Now Pay Later available at checkout

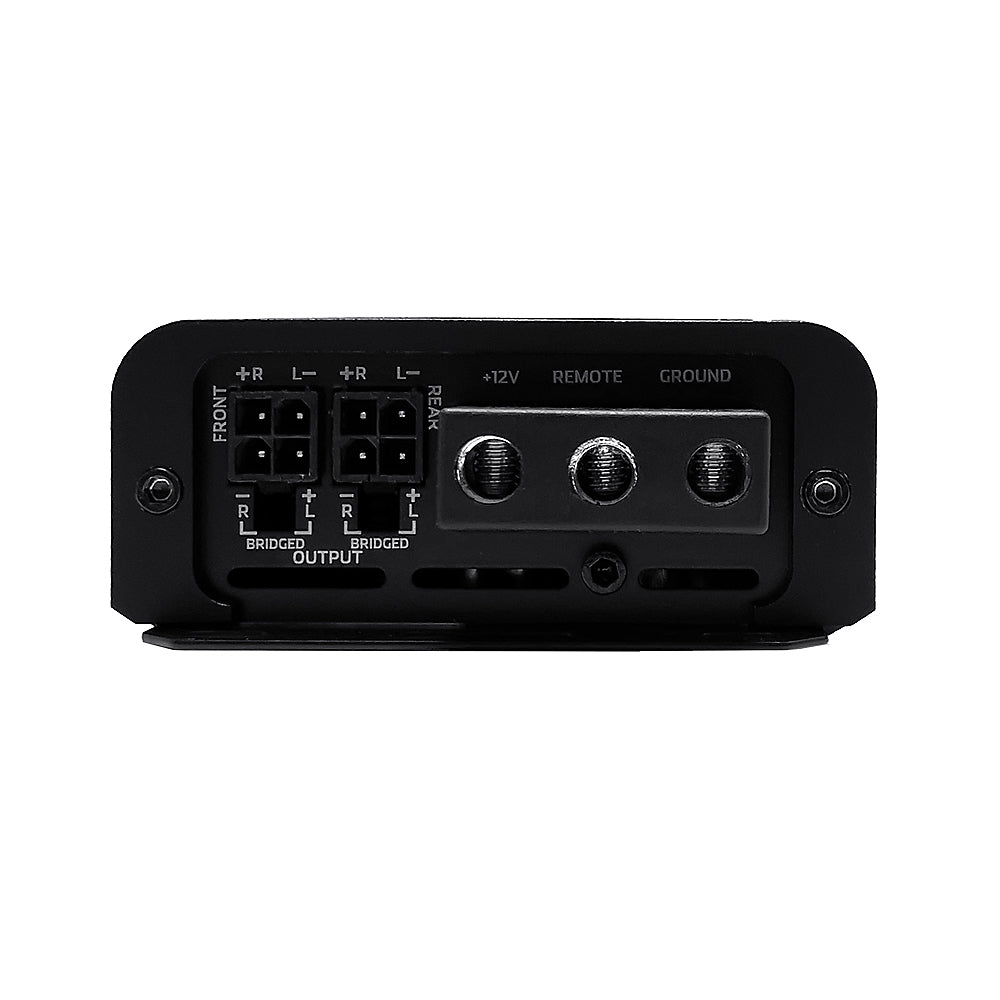

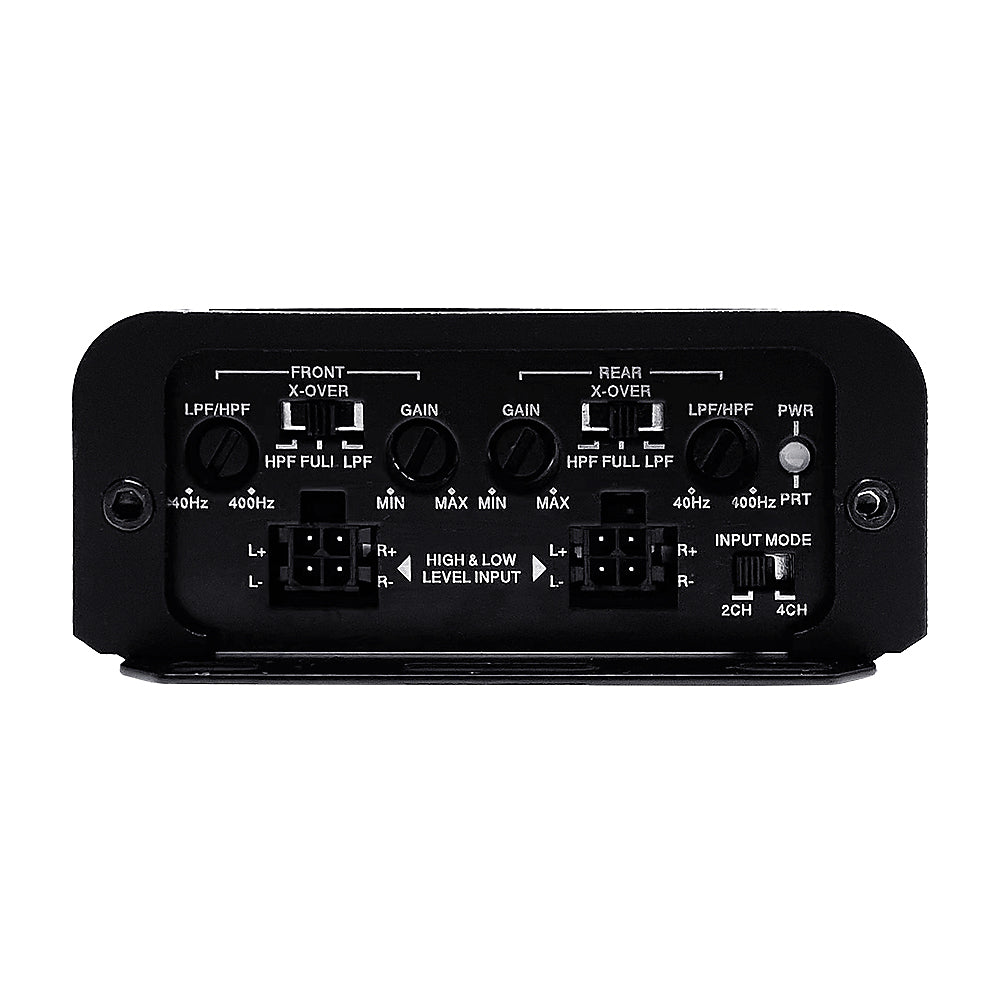

Small in size big in power The ZXM5004 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level. A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal. Key Features Massive Power & Performance • Full Class-D technology offers efficiency & performance • Short circuit/thermal and high/low voltage protection • Excellent signal-to-noise ratio and FM noise rejection • Built-in protection LED light status indicator • Surface mount component technology • Ultra small size for easy installation • Autostart on high-level input • Full adjustable HP & LP filter Specifications • Class-D 4-Channel Mini Amplifier • Power (MAX) 1000W • Power Ratings (RMS) • 80W x 4 @ 4Ohm •125W x 4 @ 2Ohm • 250W x 2 @ 4Ohm bridged •
- Frequency Response: 20Hz – 20kHz •
- Signal to Noise Ratio: > 90dB •
- Total Harmonic Distortion: < 0.3% •
- Low Pass Filter: 40Hz – 400Hz (12dB/Oct) •

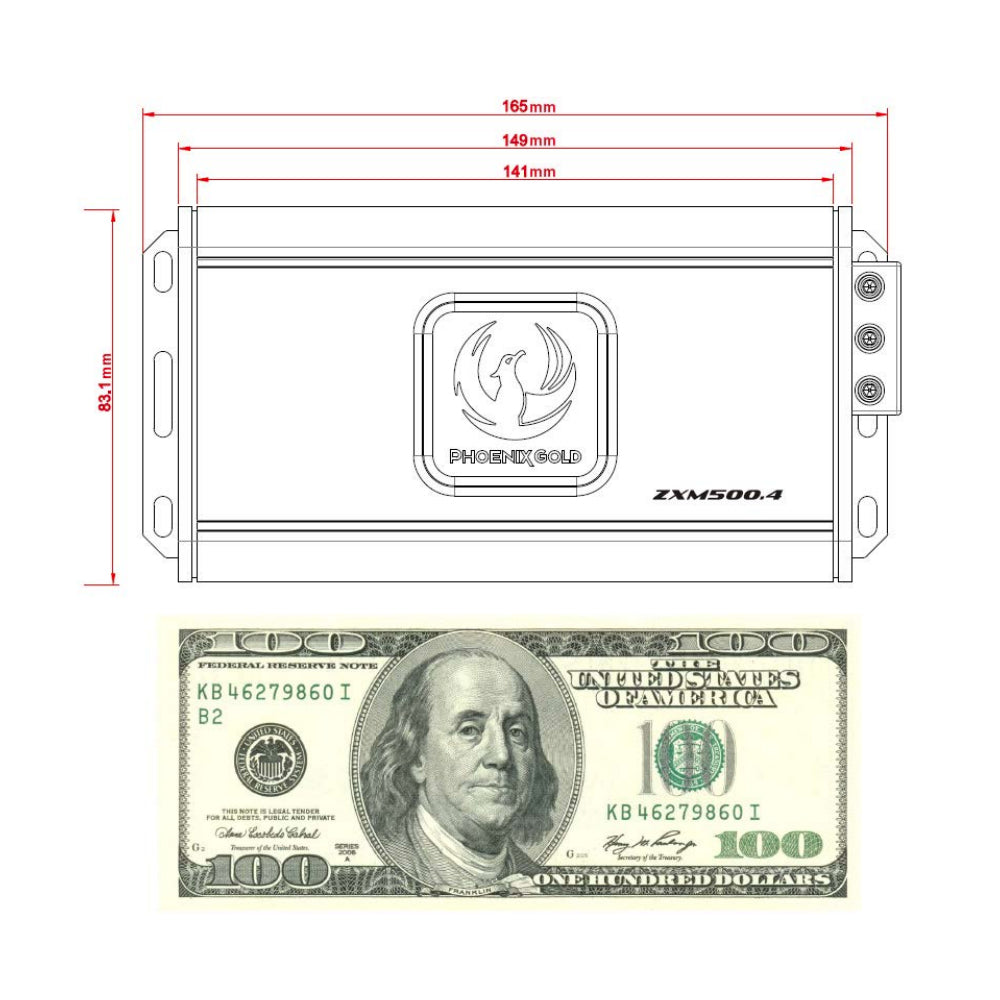

- High Pass Filter: 40Hz – 400Hz (12dB/Oct) • High-Level Input Auto Turn-On • Dimensions (L x W x H) 165 x 83.1 x 34.8mm
