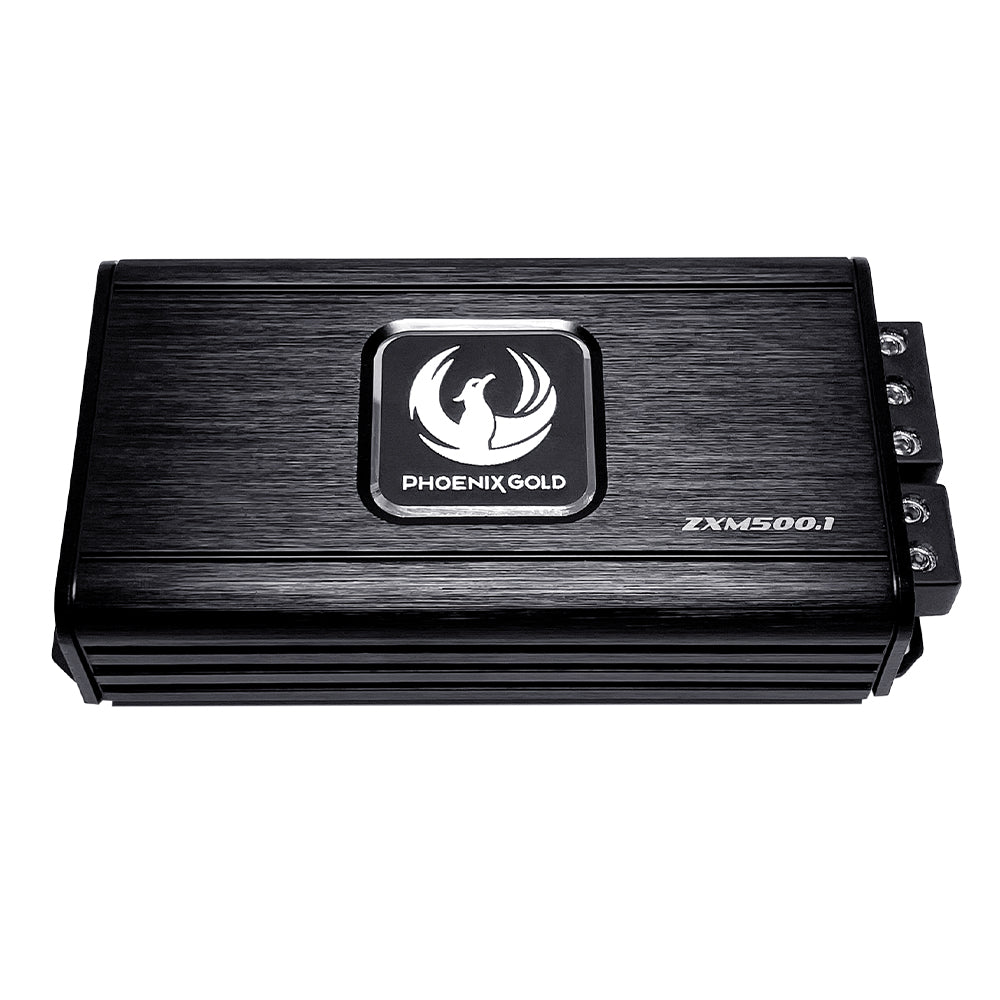

Phoenix Gold Zxm500.1 Mono Mini-Amp 1 Ohm Stable 230w @ 4 Ohm / 360w @ 2 Ohm / 500w Rms X 1 Ohm
Buy Now Pay Later available at checkout

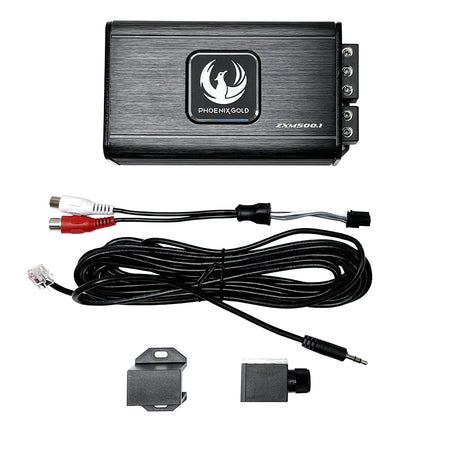

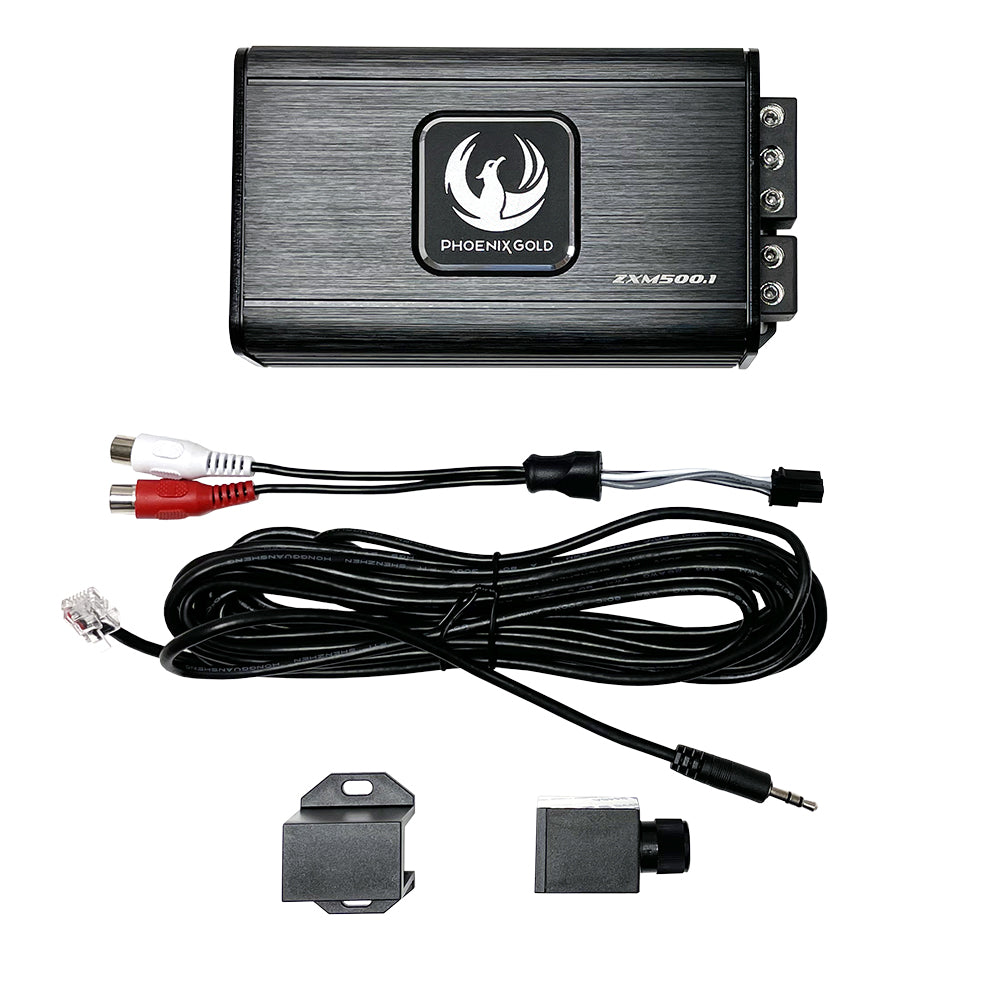

Small in size big in power The ZXM5001 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power. The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal. Key Features Massive Power & Performance • Full Class-D technology offers efficiency & performance • Short circuit/thermal and high/low voltage protection • Excellent signal-to-noise ratio and FM noise rejection • Remote gain controller included (ZXM500.1) • Built-in protection LED light status indicator • Surface mount component technology • Ultra small size for easy installation • Autostart on high-level input • Full adjustable HP & LP filter Specifications • Class-D Mono Mini Amplifier • Power (MAX) 1000W • Power Ratings (RMS) • 500W x 1 @ 1 Ohm • 360W x 1 @ 2 Ohm • 230W x 1 @ 4 Ohm •
- Frequency Response: 20Hz – 500Hz •
- Signal to Noise Ratio: >90dB •
- Total Harmonic Distortion: <0.3% •

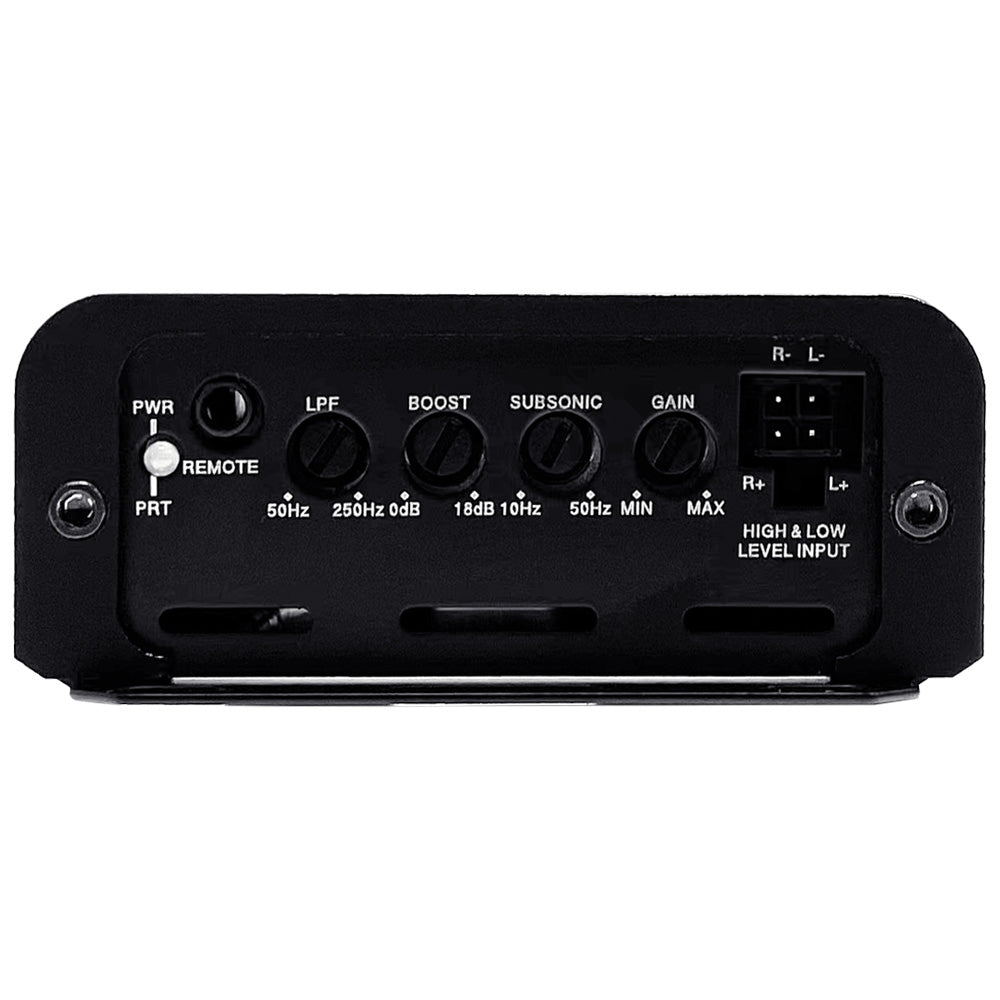

- Low Pass Filter: 40Hz – 250Hz (24dB/Oct) •
- Subsonic: 10Hz – 50Hz (24dB/Oct) •
- Bass Boost: 0 – 18dB @ 45Hz • High Level Input Auto Turn-On • Remote Control Included • Dimensions (L x W x H) 165 x 83.1 x 34.8mm
