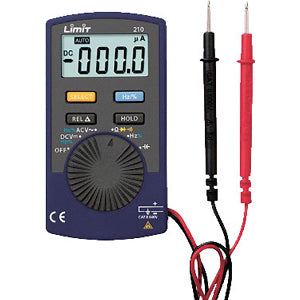

Limit Pocket Multimeter (Cat II 600V)
Buy Now Pay Later available at checkout
198650103 - LiMiT Pocket Multimeter (CAT II 600V) Digital multimeter in pocket size with autorange. Measuring DC/AC voltage resistance frequency and capacitance. Also diodtest continuity with buzzer datahold relative mode low battery capacity warning and auto off after 15 minutes. Supplied with battery testleads cover and manual. Max display 3999. Safety isolation CAT II 600V EN 61010-1 EN 61326-1.
- Technical Specifications:
- DC Voltage: 400mV-4-40-600V
- DC Voltage Resolution: 0.1mV
- DC Voltage Accuracy: 0.8% +31 digit
- AC Voltage: 4-40-400-600V
- AC Voltage Resolution: 1 mV
- AC Voltage Accuracy: 1.2% + 3 digits
- Resistance: 400O-4-40-400 KO-4-40MO
- Resistance Resolution: 0.1O
- Resistance Accuracy: 1% + 2 digits
- Capacitance: 4-40-400nF-4-40-100F
- Capacitance Resolution: 0.001nF
- Capacitance Accuracy: 4% + 3 digits
- Frequency: 10Hz-10MHz
- Frequency Resolution: 0.01
- Hz Frequency Accuracy: 0.5% + 3 digits
- Duty cycle: 0.1 - 99.9%
- Battery: 1pc 3V (CR2032)
- Dimension: 110 x 58 x 11mm
- Weight: 76gm
