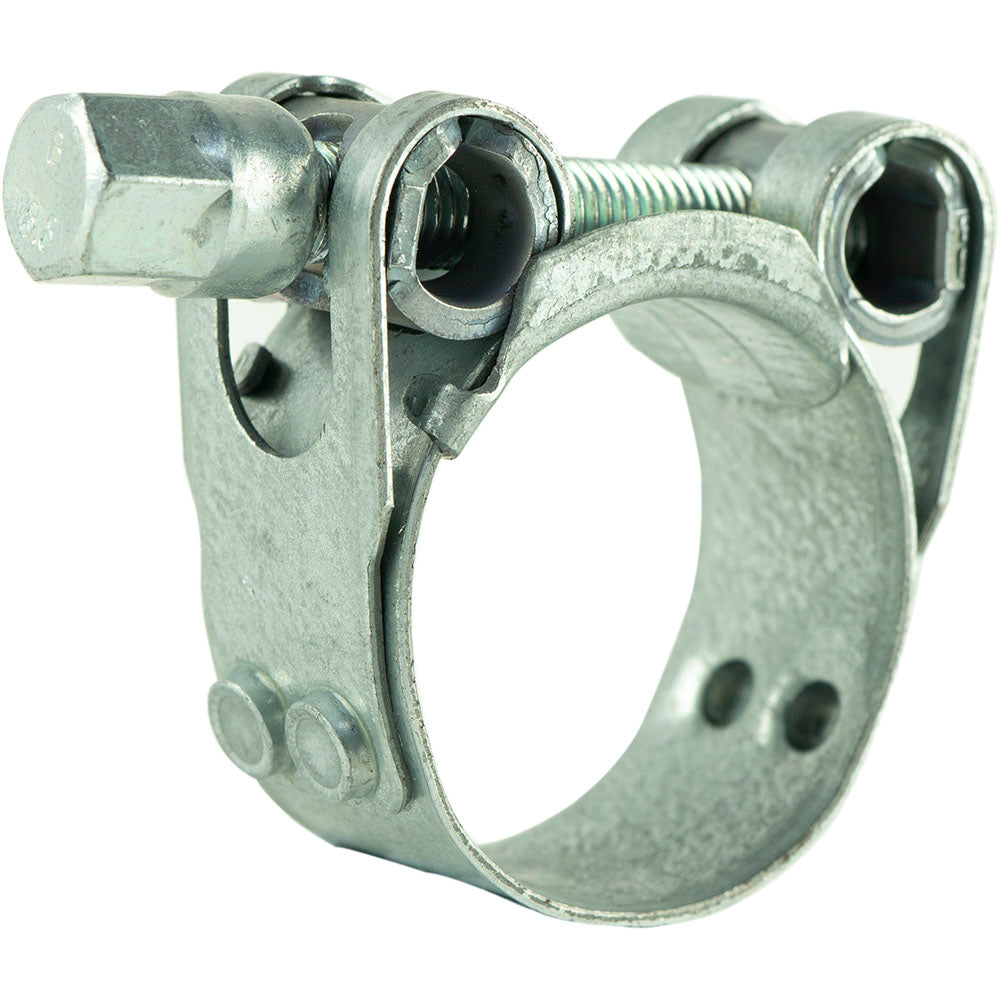

Kale HD25 226-239mm W1 TOX (ea)

HD25226239W1T | Kale HD25 226-239mm W1 TOX (ea) Innovatively designed and meticulously engineered Kale Heavy Duty T-Bolt clamps have achieved new standards in performance and reliability Kale HD T-Bolt clamps are manufactured utilising TOX-Clinching joints. A cold forming press technique that is more than 70%stronger than welding and superior to tab style mechanicallocks. Produced in Europe to DIN 3017-3 standards Kale HD T-Boltclamps are suitable for high shore hardness or reinforcedhoses. Additional design features include: No welding and no contact corrosion points Hollow D shape trunnions to reduce tensile force on thebolt and clinched joint A profiled bridge with extended tabs for secureattachment to the band without welding W1 steel bolts are Class 8.8 and feature an integratedspacer in place of a separate bush Rolled band edges which are designed to protect damage tothe hose or wall fabric A high clamping force with low free torque value. Specification Band With: 25mm Hex: 13mm Diameter Range: 226 - 239mm Tightening Torque: 20Nm Materials Band: Carbon Steel Bridge: Carbon Steel Bolt: ISO 898-1 Class 8.8* Bush: - Trunnion: Carbon Steel* Corrosion Resistance acc. to ISO 9227: Min. 72 hours *Zinc Plated Available in 2 materials (W1 and W4) in sizes ranging from17-19mm through to 239-252 mm typical applications includesuction and pump hoses across a wide range of Industries Agriculture Automotive Marine Mining Plumbing OEMs.
