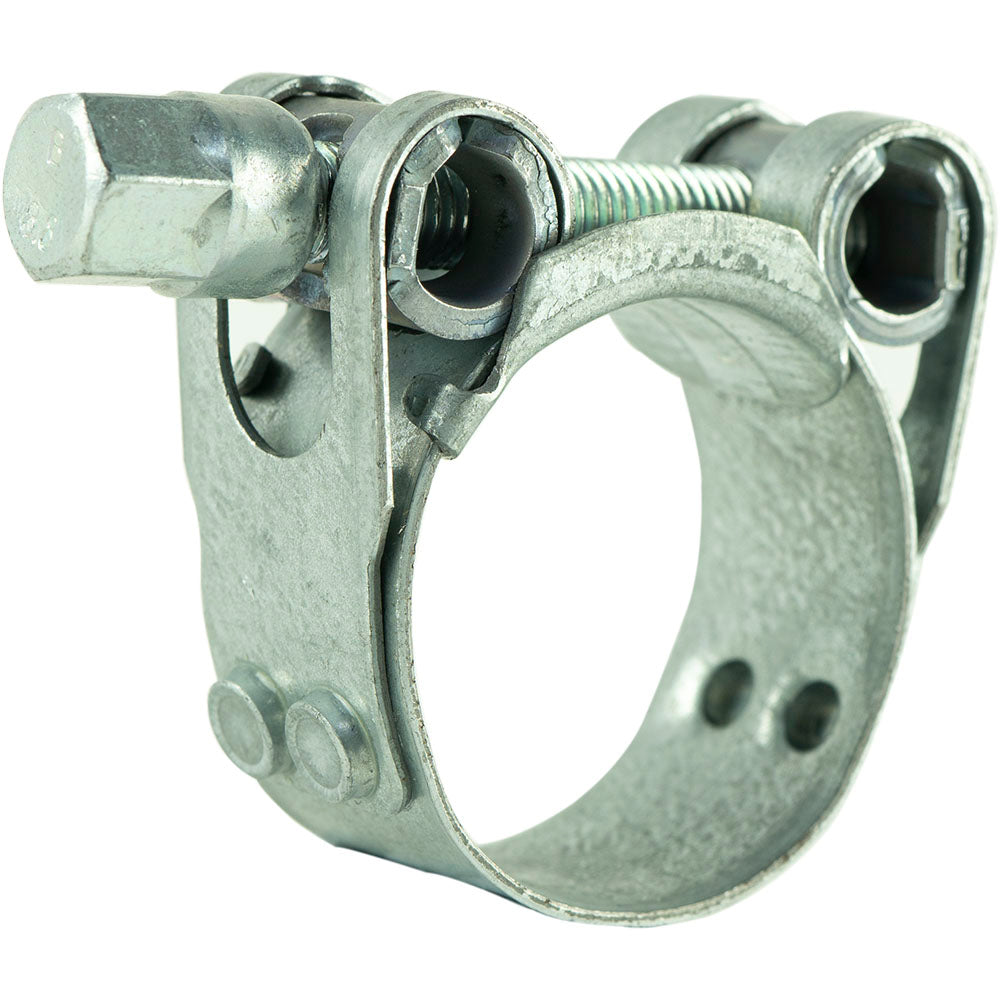

Kale HD18 27-29mm W1 TOX (ea)

HD182729W1T | Kale HD18 27-29mm W1 TOX (ea) Innovatively designed and meticulously engineered Kale Heavy Duty T-Bolt clamps have achieved new standards in performance and reliability Kale HD T-Bolt clamps are manufactured utilising TOX-Clinching joints. A cold forming press technique that is more than 70%stronger than welding and superior to tab style mechanicallocks. Produced in Europe to DIN 3017-3 standards Kale HD T-Boltclamps are suitable for high shore hardness or reinforcedhoses. Additional design features

include:

• No welding and no contact corrosion points
• Hollow D shape trunnions to reduce tensile force on thebolt and clinched joint
• A profiled bridge with extended tabs for secureattachment to the band without welding
• W1 steel bolts are Class 8.8 and feature an integratedspacer in place of a separate bush
• Rolled band edges which are designed to protect damage tothe hose or wall fabric
• A high clamping force with low free torque value. Specification
• Band With: 18mm
• Hex: 8mm
• Diameter Range: 27-29mm
• Tightening Torque: 8Nm Materials
• Band: Carbon Steel
• Bridge: Carbon Steel
• Bolt: ISO 898-1 Class 8.8*
• Bush: -
• Trunnion: Carbon Steel*
• Corrosion Resistance acc. to ISO 9227: Min. 72 hours *Zinc Plated Available in 2 materials (W1 and W4) in sizes ranging from17-19mm through to 239-252 mm typical applications includesuction and pump hoses across a wide range of Industries
• Agriculture
• Automotive
• Marine
• Mining
• Plumbing
• OEMs.
