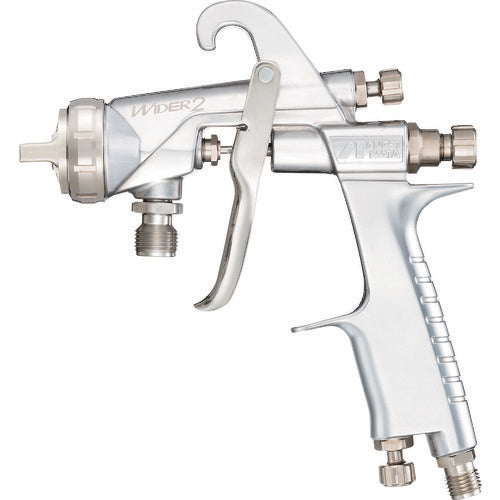

Iwata Suction Spraygun Wider2 2.0mm R2 Cap Gun Only

Dependable Quality and Repeatability From "W" to "WIDER" again - the new model has arrived. The key point in industrial coating products are quality and repeatability. We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Now, we have developed the new WIDER1 and WIDER2 models, which go further than ever in our pursuit of these key point. Our spray guns have penetrated markets around the world since the W-200 make it's debut 22 years ago, and W-101 14 years ago. We have distilled this experience and expertise that we accumulated over those years into this new WIDER model. FEEL Linear Response Pattern Adjustment set The previous pattern adjustment set reached around 45% of full pattern width with 1 turn, around 80% with 1.5 turns, and almost 100% or nearly fully open with 2 turns. Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns. This linear response to adjustment is intuitively easier to operate. REPEATABILITY Revised Air Valve Seat Sets for a more consistent installation Previous air valve seat sets consisted of a combination of large and small orifices in the air channel, so installing it into place could produce differences in air volume due to its’ position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results. That enables even more consistent application.

Previous Model	New Model	Type of Feed	Fluid Nozzle Diameter (Fmm)	Atomizing Air Pressure (MPa)	Air Consumption (L/min)	Fluid Output (mL/min)	Pattern Width (mm)	Atomization	Air Cap	Weight (g)	Application
W-200-122P	WIDER2-12G2P	Pressure	1.2	0.29	500	500	400	High atomization	G2P	375	Large parts and vehicles, line painting
W-200-151S	WIDER2-15K1S	Suction	1.5	0.29	200	240	210	General atomization	K1	375	Wood and furniture, metals
W-200-152S	WIDER2-15K2S	Suction	1.5	0.29	330	240	290	High atomization	K2	375	Automotive refinishing, Wood and furniture, plastics
W-200-182S	WIDER2-18K2S	Suction	1.8	0.29	330	290	340	High atomization	K2	375	Automotive refinishing, Wood and furniture, plastics
W-200-201S	WIDER2-20R1S	Suction	2	0.29	260	350	260	General atomization	R1	375	Metals, Wood and furniture, medium-viscosity paints
W-200-202S	WIDER2-20R2S	Suction	2	0.29	360	350	290	High atomization	R2	375	Metals, Wood and furniture, medium-viscosity paints
W-200-251S	WIDER2-25W1S	Suction	2.5	0.29	360	440	280	General atomization	W1	375	Metals, Wood and furniture, anti-corrosion treatment for steel   frames, high-viscosity paints
