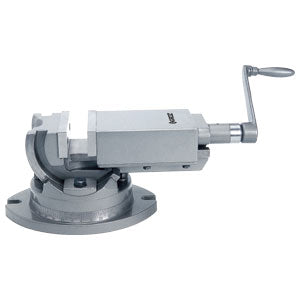

Groz Super Precision Angular Vice 4in / 100mm

Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle. Angular adjustment is achieved via the angular slide that can be set to any desired angle 45 on either sides. Additionally the fully graduated 360 swivel base allows the vice to be set at any angle along the vertical axis. These vices are manufactured from close grained hi tensile seasoned cast iron with fully hardened and ground tool steel jaws. Ergonomically designed all steel handle allows for stress free operation. It is assembled on the spindle crank with a spring loaded mechanism providing positive grip. Use of hi tensile grade 10.8 fasteners provides strength and rigidity to these vices. Relief in clamp seat ensures complete surface contact as against a line contact between the Hold Down clamp and movable slide thereby providing firm locking at any desired by angle. A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. Hold Down slots allow for secure clamping of the vice on the machine table. Jaw Width: 4 inch (100mm) Jaw Opening: 4 inch (100mm) Jaw Depth: 1-1/2 inch (38mm)
