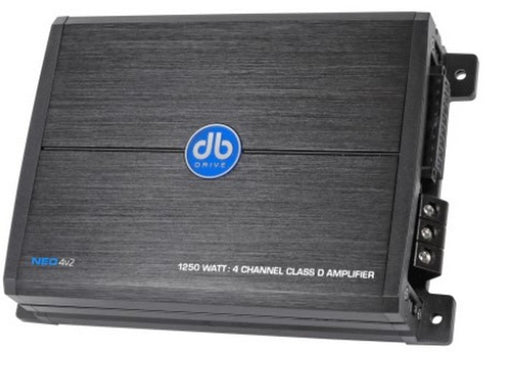

Db Drive Amp Neov2 4ch - 125w Rms X 4 @ 4 Ohm / 250w Rms X 4 @ 2ohm
.
Regular price
$399.00 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
Description
The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.
- 4 Channel Full Range Class D Technology
- 2Ω Mono load Capability
- Amphibnious grade conformal coating on PCB
- Audiophile Grade RCA connectors
- Variable 12dB High/Low-Pass Crossover Filters
- Bridgeable Outputs @ 4Ω Load
- Double Sided Circuit tablet
- Compatible with any 4/2Ω Loudspeaker
Specifications
GENERAL SPECIFICATIONS |
|---|
Rated Power @ 14.4 Volts |
Dynamic Power Handling |
4 x 125 Watts @ 4Ω
4 x 250 Watts @ 2Ω
2 x 500 Watts @ 4Ω Bridged
|
PARAMETERS | |
|---|---|
THD (100Hz @ 1Ω) |
0.04% |
Bandwidth (-3 dB) |
18Hz ~ 22KHz |
Damping Factor (1KHz @ 4Ω) |
100 |
S/N ratio (as weighted @ 1 Volt) |
99db |
Input Sensitivity |
0.20V ~ 5.0V RMS |
Minimum Load Impedance |
2Ω |
Input |
Pre in RCA |
Channel 1-2 filter Range |
55Hz ~ 750Hz |
Channel 3-4 filter Range |
55Hz ~ 750Hz |
Dimensions
Length |
6.8″ / 175 mm |
Width |
5.3″ / 135 mm |
Height |
1.88″ / 48 mm |
