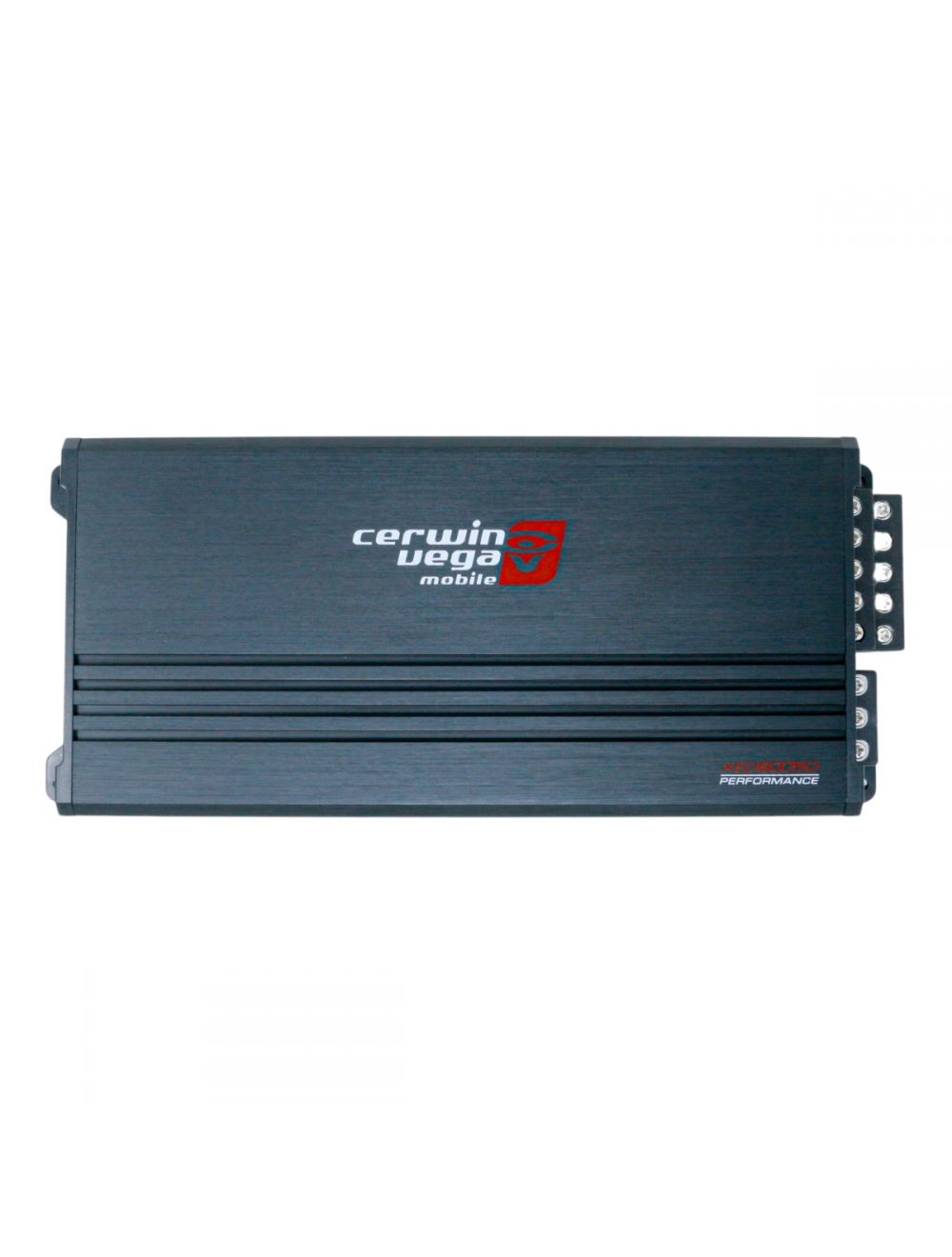

Cerwin Vega Amplifier Xed Series 5 Ch 65w Rms X 4 @ 4ohm / 90w Rms X 2ohm + 300w Rms @ 2ohm
.
Regular price
$549.95 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.
Features:
1000W MAX Power
5 Channel Amplifier
90W x 4 + 1 x 300W @ 2O RMS
65W X 4 + 1 x 200W @ 4O RMS
220W x 2 + 350W Bridged
Crossover: 35Hz~250Hz (LP/HP)
Frequency Response: 10Hz~30KHz+10Hz~250Hz
Dimensions: 10.3” x 4.7” x 1.8” (260mm x 120mm x 46.5mm)
Amplifier 5 Channel
Amplifier Power 1000W MAX
RMS Power(2O) 4 x 90W + 1 x 300W
RMS Power (4O) 4 x 65W + 1 x 200W
Topology Class D
Frequency Response 10Hz~30KHz+10Hz~250Hz
Power Supply Full PWM
Power Supply (Threshold) 10.0VDC – 16.0VDC
Idle Current (0.7A)
Distortion - THD (1KHz@4O) <0.1%
Distortion - S/N Ratio (A weight @ 1W) -85dBA
Distortion - S/N Ratio (A weight @ FP) -101.1dBA
Input Sensitivity Low 500mV – 12V
Input Sensitivity High N/A
Input Impedance - Low Input Level 20 KO
Input Impedance - High Input Level 100 O
Output Impedance 2 O
Damping Factor (50Hz@4O) >70
Bandwidth (-3dB) 10Hz-30KHz+10Hz-250Hz
Crossover (-12 dB/ Oct) Variable High-Pass 35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Low-Pass 35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic N/A
FUSE Ratings - ATC 2 x 25A
Dimension - Length x Width x Height - Inches(mm) 10.3” x 4.7” x 1.8” (260 x 120 x 46.5mm)
