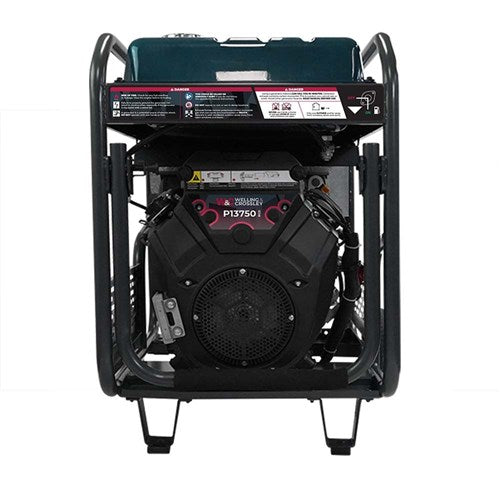

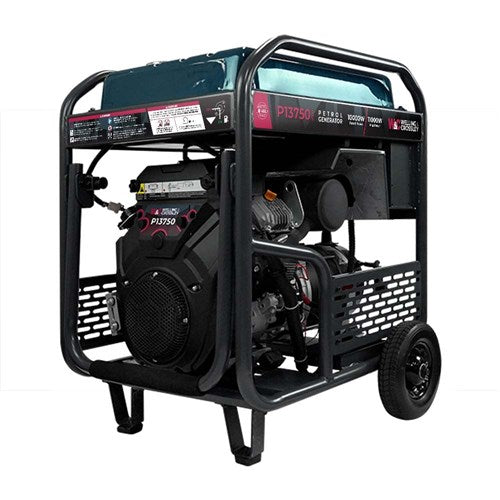

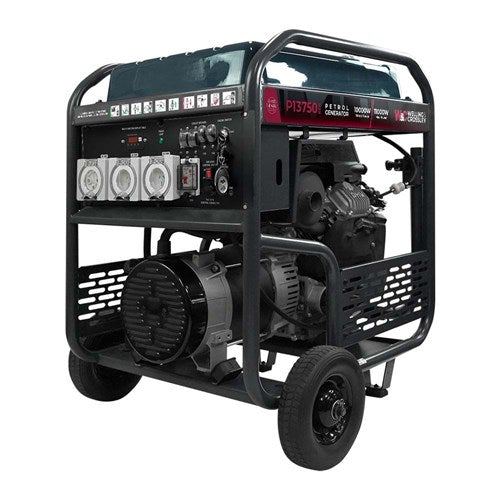

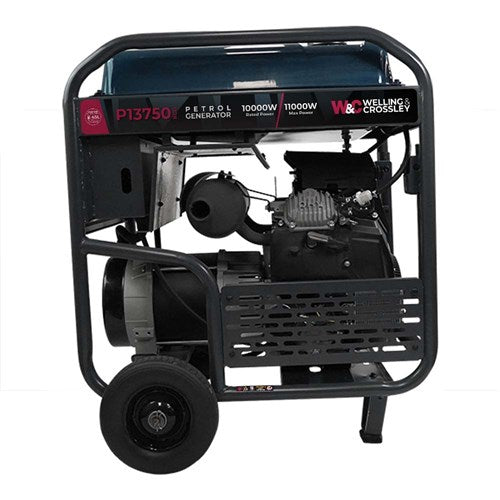

W&C 13.75 kVA (11,000W) Open Frame AVR Petrol Generator E-Start & RCD WC-P13750RCD
Buy Now Pay Later available at checkout
WC-P13750RCD Welling & Crossley 13.75 kVA (11,000W) Open Frame AVR Petrol Generator E-Start & RCD
Features
RCD (Residual Current Device):
An RCD is a safety device that quickly cuts off the power supply if it detects an imbalance between live and neutral currents - which can indicate a leakage current through a person or a fault in the circuit. This helps to prevent electric shocks.
AVR (Automatic Voltage Regulator):
An AVR stabilises the output voltage of a generator, preventing fluctuations that can damage electronic equipment. It ensures a steady and consistent voltage level, enhancing the safety and reliability of the generator.
2-Wire Start:
This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal
Fuel Efficient:
This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.
Australia has emissions standards for outdoor power equipment. Euro 5 ensures compliance with these regulations.
- Multiple start options: Recoil start, push-button electric start, wireless remote start, 2-wire remote start
- Large fuel capacity: 45L petrol tank - extended run times with an economical motor, ideal for prolonged use
- Powerful & efficient: 4-Stroke, air-cooled, OHV engine - reliable performance for a variety of applications
- Heavy duty wheels, handle and lifting bar: Designed for easy transportation and mobility, the lifting bar to aid in vertical mechanical lifts
- Digital V/F/T display: 3-in-1 display - easy-to-read display shows Volts, Frequency and Time for convenient monitoring
Applications

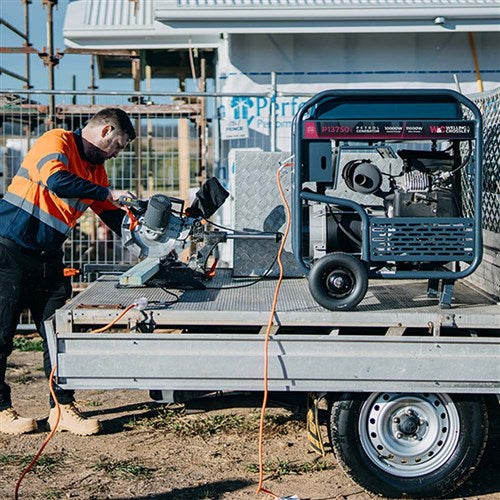

Worksite Power
Outdoor Events
Market Stalls & Mobile Business
DIY Workshop
Farming & Agriculture
- Compliant with safety regulations for work areas and construction sites
- Off-grid solar pumping system back-up
- Power irrigation systems, farm equipment and agricultural machinery
- Outdoor events for lights, sound systems etc
- Larger mobile businesses or market stalls to power lights and appliances
RCDs cannot be used with power boards or equipment with built-in RCD protection
Product Video
| Technical Specifications | |
|---|---|
| Product Code | 811988 |
| Model Rating | 13.75kVA |
| Max AC Output | 11000W |
| Rated AC Output | 10000W |
| Voltage | 240V AC |
| Type | Open Frame AVR with RCD |
| Frequency | 50Hz |
| Connections | 2 x IP66 15A 1 x IP66 32A 1 x USB-A (18W) 1 x USB-C (15W) |
| Engine | WC-690 |
| Type | Twin cylinder, 4 stroke, OHV air-cooled petrol |
| Displacement | 688cc |
| Speed | 3000rpm |
| Low Oil Protection / Warning | Fitted |
| Ignition System | TCI |
| Starting Type | Recoil / Electronic / 2-Wire / Wireless Remote |
| Fuel Tank Capacity | 45L |
| Fuel Consumption | 2.2 L/hr @ ¼ load |
| Dimensions & Performance | |
| Product Dimensions | 810 x 640 x 920mm |
| Dry Weight | 160kg |
| Operating time at 25% Load | 27hr |
| Noise Level @ 7m | ＜90dBA |
| Limited Warranty | 2 Years |
| Additional | |
| Oil | 1.5L SAE10W-30 |
| Spark Plug | NGK BPR6ES |
| Fuel Type | Petrol - 91 octane unleaded |
| Power Factor | 0.8 |
| Packaging Dimensions | 790 x 620 x 790mm |
| Brand | Welling & Crossley |
| Product Type | Portable Generator |
| Generator Type | AVR Generator with RCD |
| Frame Type | Open Frame |
| Rated AC Output (W) | 10000 |
| Fuel | Petrol |
| Generator Rating (kVA) | 13.75 |
