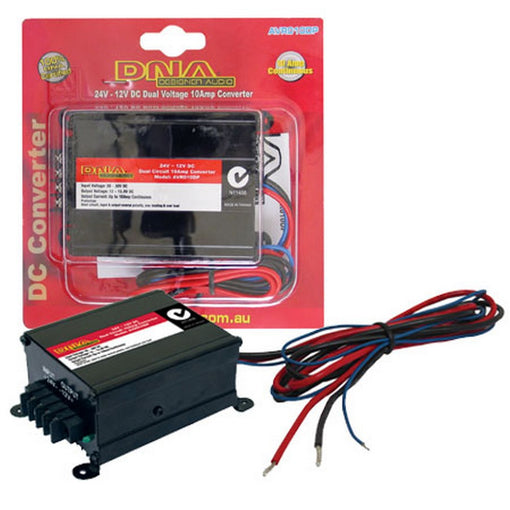

Voltage Reducer 24v To 12v @ 10 Amps Continuous Dual Output

In stock
SKU: AVR010DP
Regular price $129.95 NZD inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.

Buy Now Pay Later available at checkout


Got questions? Feel free to get in touch.
24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.

  • Input DC voltage range: DC20~30V DC
  • Output voltage range: 12V~13.8V
  • Continuous power: 10 Amps
  • Peak power: 15 Amps
  • No load current draw: 20mA
  • Max. power efficency: >90%
  • Cooling: Air convection
  • Input polarity reverse: Diode protection
  • Output polarity reverse: Circuit protection
  • Over heating: Circuit protection
  • Over load: Circuit protection
  • Output short: Circuit protection
  • Fuse: 15 Amps
  • Dimension (LxWxH): 90 x 73 x 45mm
  • Weight: 330g
