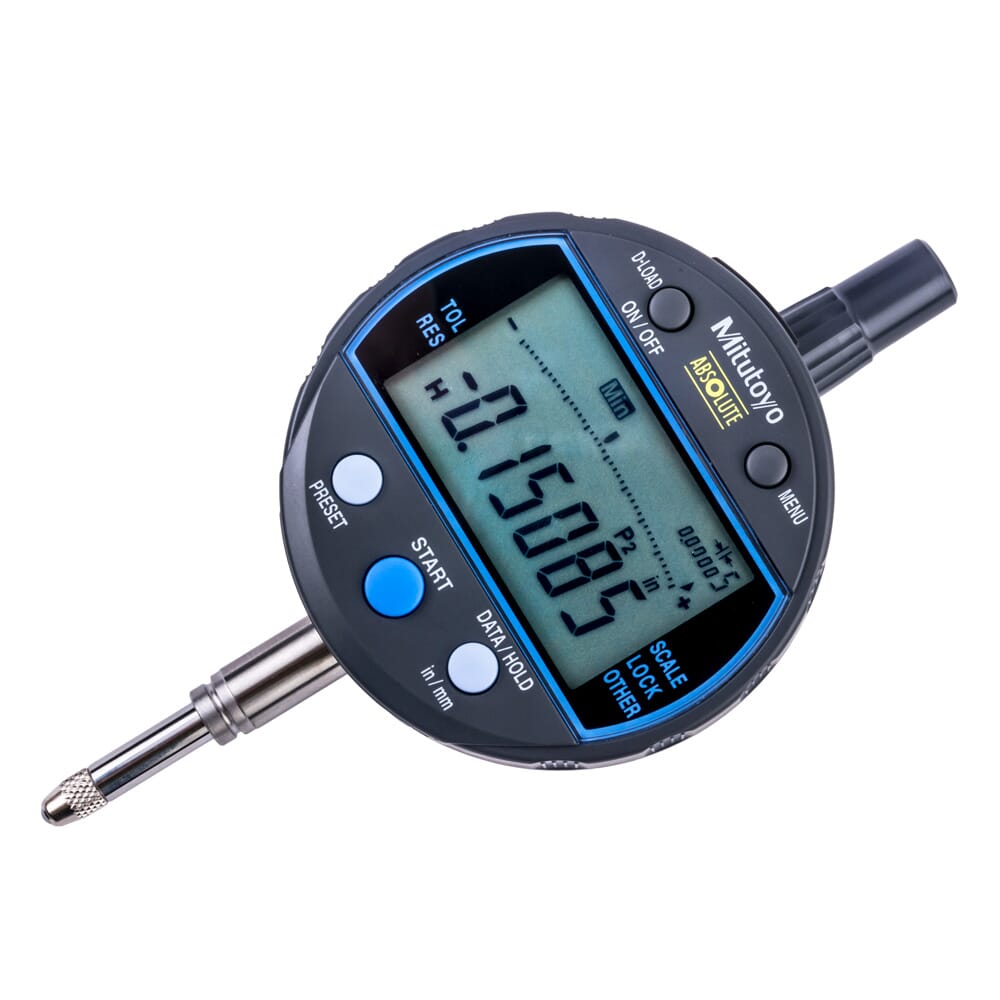

Mitutoyo Digimatic Indicator ID-C .500"/12.7mm Bore Gauge Type
Buy Now Pay Later available at checkout
Dedicated for inside measurement with minimum value hold and tolerance judgement function
The new Bore Gage-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock. This is designed to prevent accidental changing of settings during operation.
Parameter setting software makes it even easier to set all of the available parameters.(optional)
FAST measurement frequency allows the user to increase the number of readings per second from 10 to 50
The minimum value holding function provides the easy of detection of hole diameter.
An analog bar indicator is integrated to enhance the intuition in reading.
GO/+/-NG judgment is performed by setting the upper and lower tolerances.
Simple operation of many functions using 5 buttons and status icons
Measurement data memory function (9 measurement results can be stored)
Wide LCD annd new analog bar graph are now standard on all models
Code: 543-311B,
Range: 0-.500"/12.7mm,
Graduation: .00005"/0.001mm (selectable),
Accuracy: +/- .0001"/0.003mm,
Repeatability: .0001"/0.002mm,
Stem Diameter: 8mm
.5"/12.7mm
