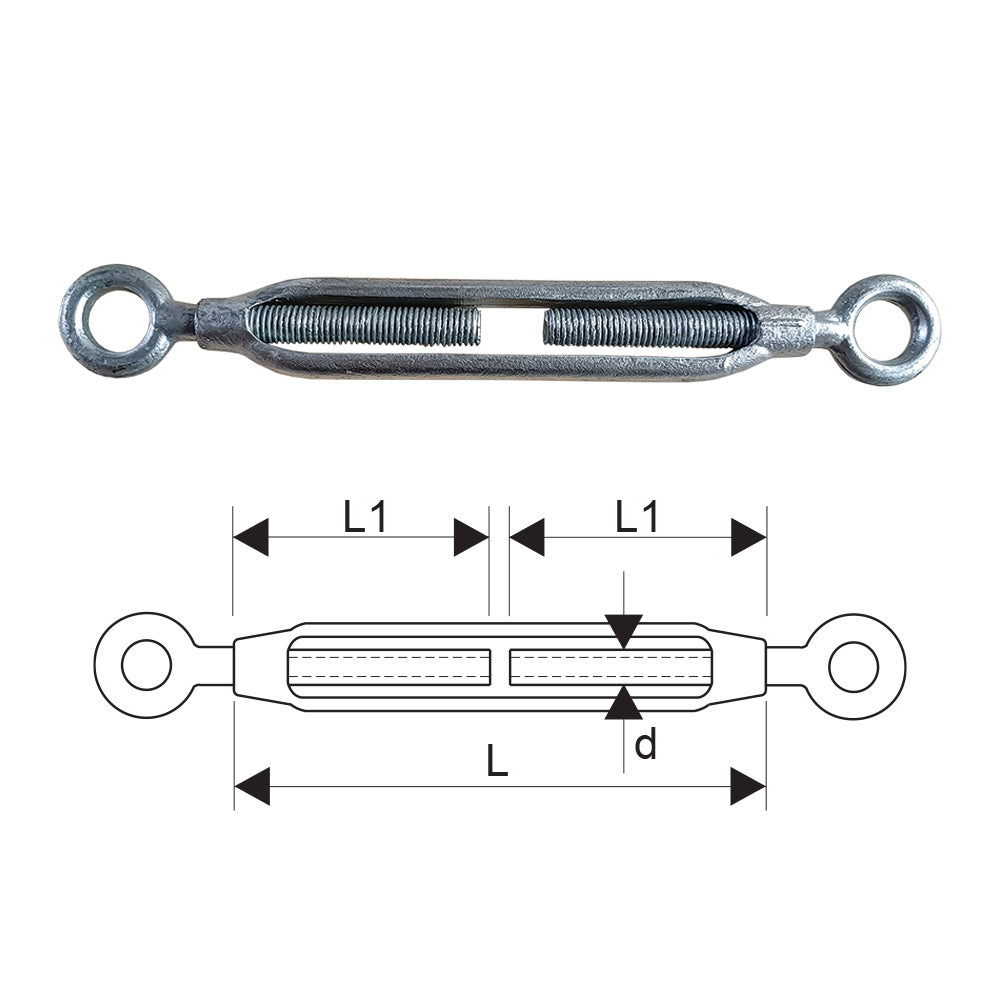

ITM Turnbuckle-Galvanised Commercial-Eye &
- Thread (mm): M6
- Body Length (mm): 100
- Screw Length (mm): 48
- d (mm): 6
- Weight (kg): 0.095
- Thread (mm): M8
- Body Length (mm): 125
- Screw Length (mm): 58
- d (mm): 8
- Weight (kg): 0.155
- Thread (mm): M10
- Body Length (mm): 150
- Screw Length (mm): 70
- d (mm): 10
- Weight (kg): 0.25
- Thread (mm): M12
- Body Length (mm): 200mm
- Screw Length (mm): 95mm
- d (mm): 12mm
- Weight (kg): 0.49kg
- Thread (mm): M16
- Body Length (mm): 250
- Screw Length (mm): 120
- d (mm): 16
- Weight (kg): 0.92
- Thread (mm): M20
- Body Length (mm): 300
- Screw Length (mm): 140
- d (mm): 20
- Weight (kg): 1.6
- Thread (mm): M24
- Body Length (mm): 350
- Screw Length (mm): 190
- d (mm): 24
- Weight (kg): 3.18
Buy Now Pay Later available at checkout
The ITM Turnbuckle-Galvanised Commercial-Eye & range covers 7 models: TM9230-01060, TM9230-01080, TM9230-01100, TM9230-01120, TM9230-01160, TM9230-01200 and 1 more. The table below shows how the models differ. Select your model from the options above.
About this range
JIS Standard
Galvanised finish Specifications
Models in this range
| Model | Option |
|---|---|
| TM9230-01060 | Eye-6mm |
| TM9230-01080 | Eye-8mm |
| TM9230-01100 | Eye-10mm |
| TM9230-01120 | Eye-12mm |
| TM9230-01160 | Eye-16mm |
| TM9230-01200 | Eye-20mm |
| TM9230-01240 | Eye-24mm |
