ITM Electric Hoist-415V-1 Ton-6 Meter Lift
.
Regular price
$3,519.70 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
TM9003-01006 | ITM Electric Hoist 415V 1 Ton 6 Meter Lift
- Japanese technology with dual braking system to ensure safe and reliable operation
- Dual Speed
- Compact and light weight design
- Weight overload limiter for safety
- Dual-gear drive system providing smooth and quiet operation
- Three phase, 415V motor
- Upper and lower limit switches to prevent chain runout
- Chain length can be altered by ITM to your required length
- Tested & certified to AS 1418.2
- Test certificate & user manual supplied
- Replacement Chain 7.1mm TM9810-01607-1
- Replacement Chain 11.2mm TM9810-04011-2
SPECIFICATIONS
- Rated Capacity: 1 Tonne
- Standard Lift: 6m
- Running Test Load: 12.5kN
- Motor: 1800W 415V 3P
- No. of Chain Drops: 1
- Chain Type: Grade 80 7.1mm
- Lift Speed: 6.9 & 2.3m/min
- Net Weight: 68kg
- Extra Weight Per Metre Of Extra Lift: 1.1kg

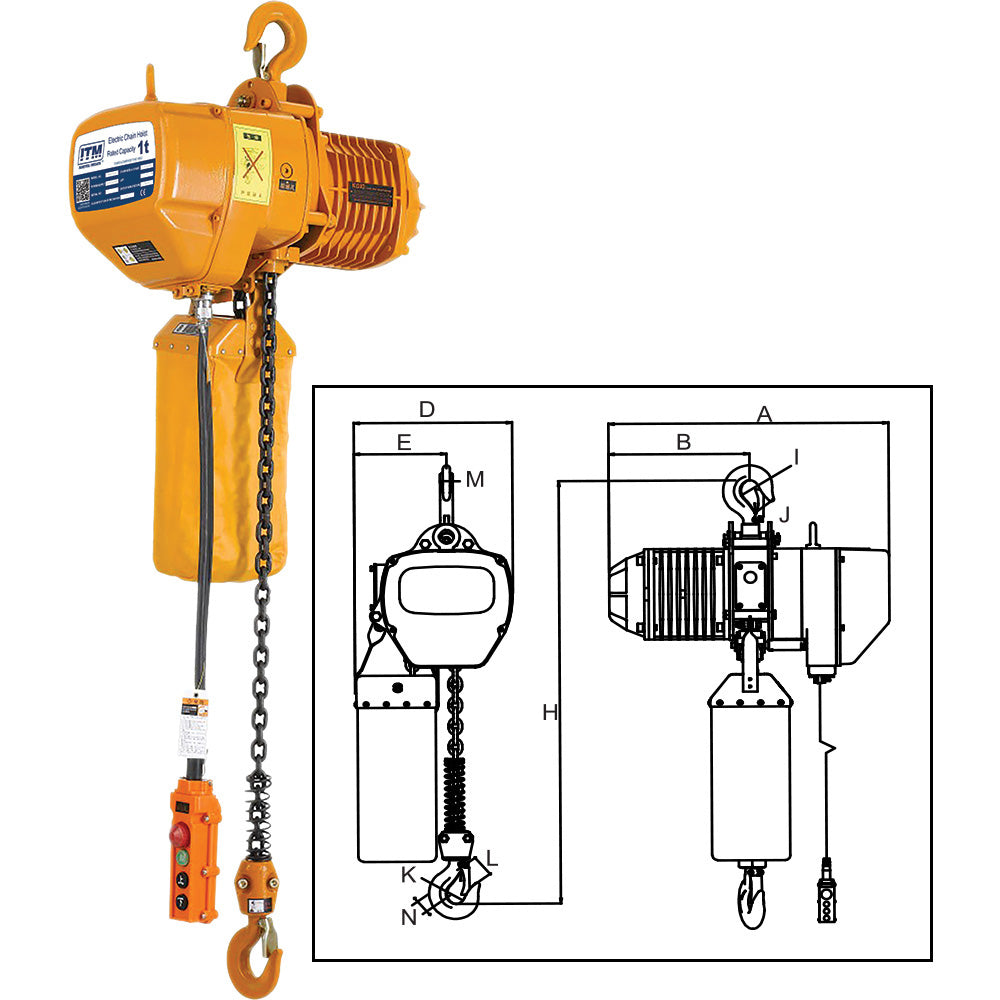

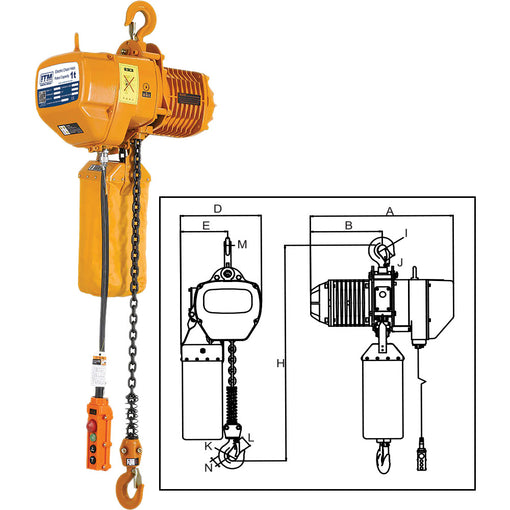

- Dimension A: 582mm
- Dimension B: 280mm
- Dimension D: 300mm
- Dimension E: 176mm
- Dimension H: 650mm
- Dimension I: 40mm
- Dimension J: 31mm
- Dimension K: 40mm
- Dimension L: 31mm
- Dimension M: 22mm
- Dimension N: 22mm
