TM9003-01003 | ITM Electric Hoist 415V 1 Ton 3 Meter Lift
Features
- Japanese technology with dual braking system to ensure safe and reliable operation
- Dual Speed
- Compact and light weight design
- Weight overload limiter for safety
- Dual-gear drive system providing smooth and quiet operation
- Three phase
- 415V motor
- Upper and lower limit switches to prevent chain runout
- Chain length can be altered by ITM to your required length
- Tested & certified to AS 1418.2 Test certificate & user manual supplied
- Replacement Chain 7.1mm TM9810-01607-1
- Replacement Chain 11.2mm TM9810-04011-2 Specifications
- Rated Capacity: 1 Tonne
- Standard Lift: 3m
- Running Test Load: 12.5kN
- Motor: 1800W 415V 3P
- No. of Chain Drops: 1
- Chain Type: Grade 80 7.1mm
- Lift Speed: 6.9 & 2.3m/min
- Net Weight: 61kg

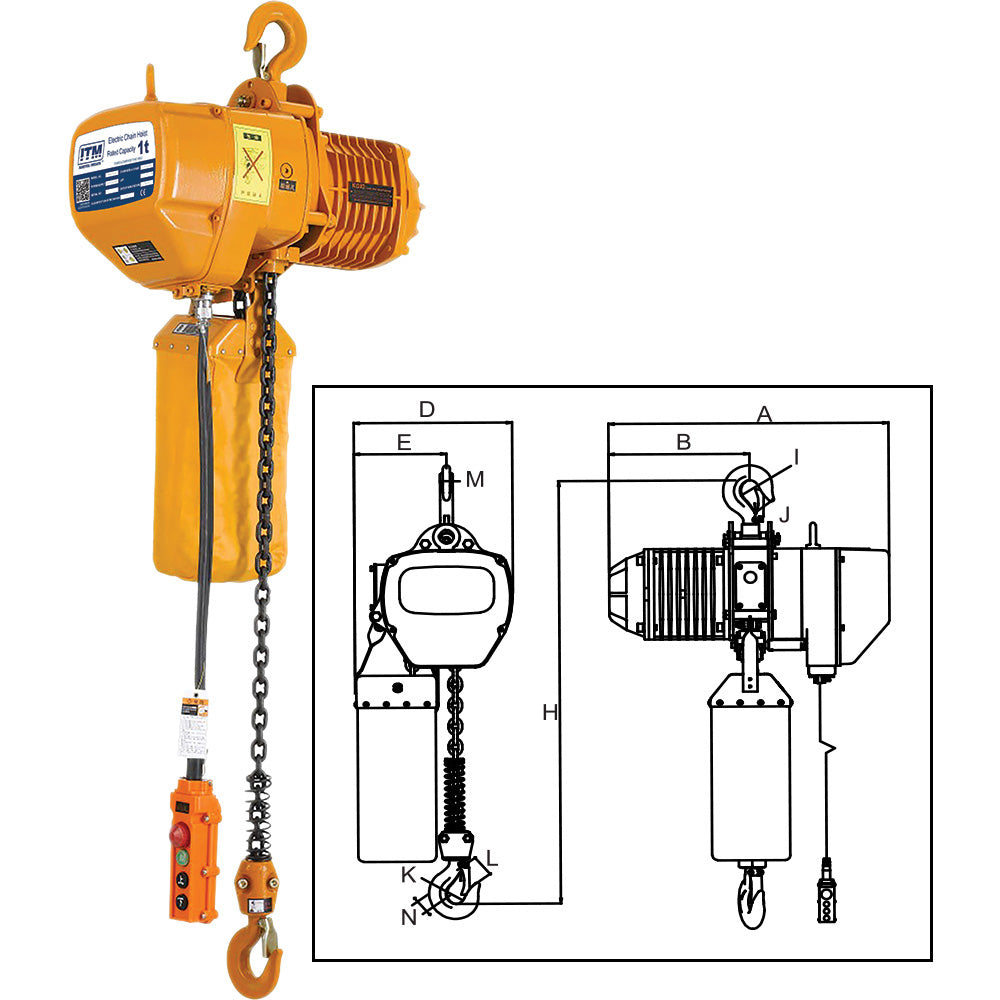

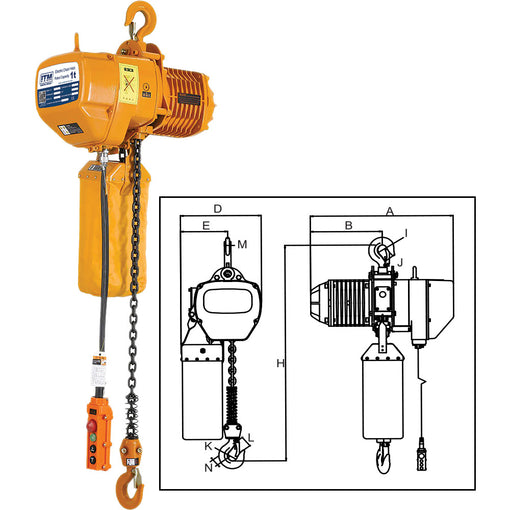

- Extra Weight Per Metre Of Extra Lift: 1.1kg Dimensions (mm)
- A: 582 B:
- 280
- D: 300
- E: 176
- H: 650
- I: 40
- J: 31
- K: 40
- L: 31
- M: 22
- N: 22
