ITM Concrete Lifting Clutch Panel Lifter 5T
.
Regular price
$290.80 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
TM9814-00050 | ITM Concrete Lifting Clutch Panel Lifter 5T
Features
- Specifically designed for lifting precast concrete elements with an embedded pin
- Easily engages under load, ensuring proper connection
- Simple clutch release when lifting completed
- Available in working load limits ranging from 1.3t to 20t
- Tested and certified to AS 3850.1

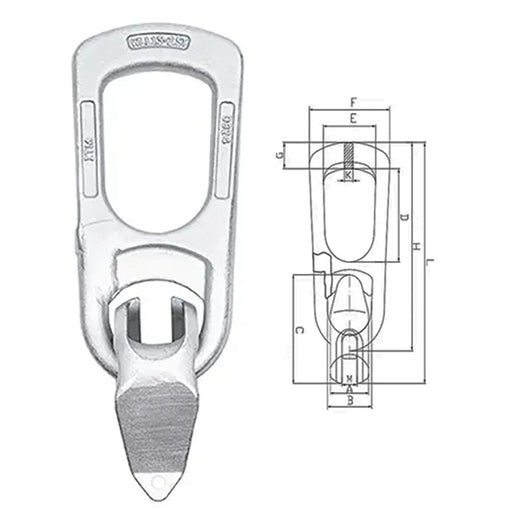

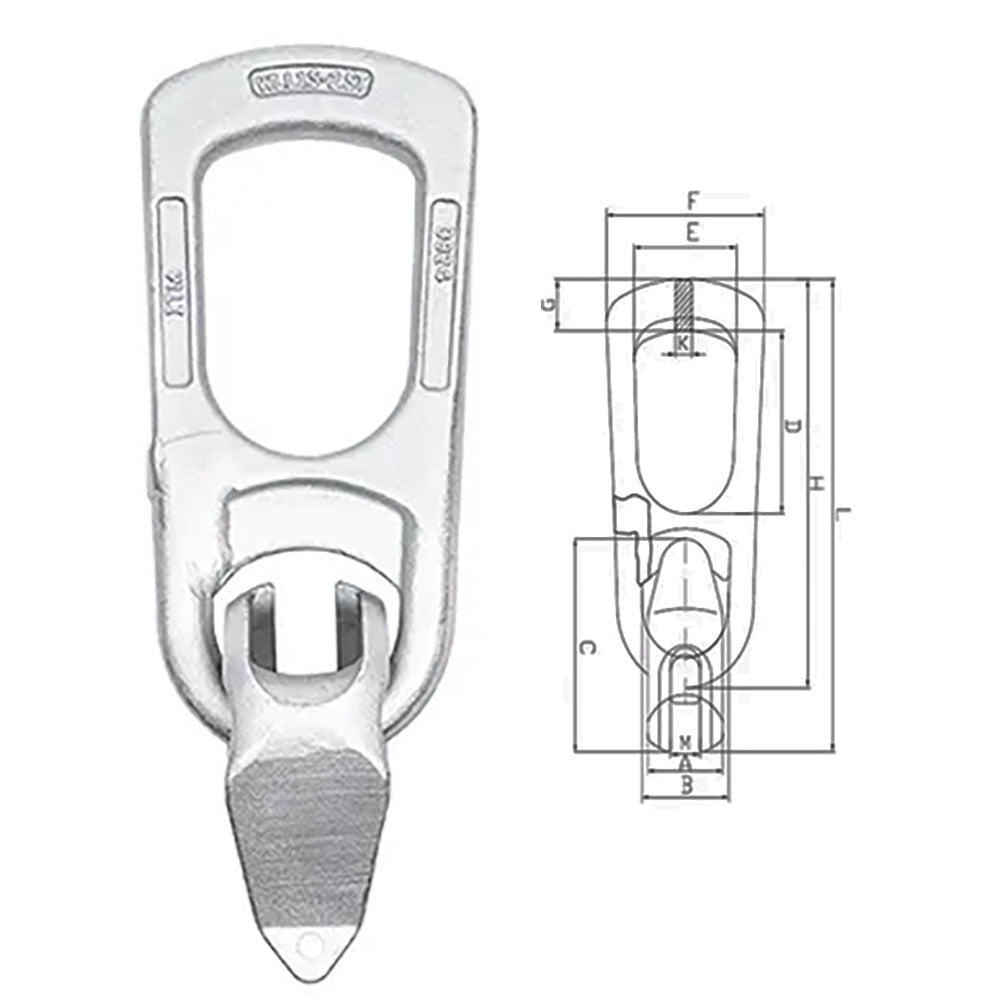

Specifications
- W.L.L. (t): 5
- B.L. (t): 20
- Dimension A (mm): 55
- Dimension B (mm): 70
- Dimension C (mm): 133
- Dimension D (mm): 88
- Dimension E (mm): 69
- Dimension F (mm): 110
- Dimension H (mm): 242
- Dimension M (mm): 22
- Dimension L (mm): 282
- Dimension G (mm): 35
- Dimension K (mm): 18
- Weight (kg): 3.24
