TM9814-00025 | ITM Concrete Lifting Clutch Panel Lifter 2.5T
Features
- Specifically designed for lifting precast concrete elements with an embedded pin
- Easily engages under load, ensuring proper connection
- Simple clutch release when lifting completed
- Available in working load limits ranging from 1.3t to 20t
- Tested and certified to AS 3850.1

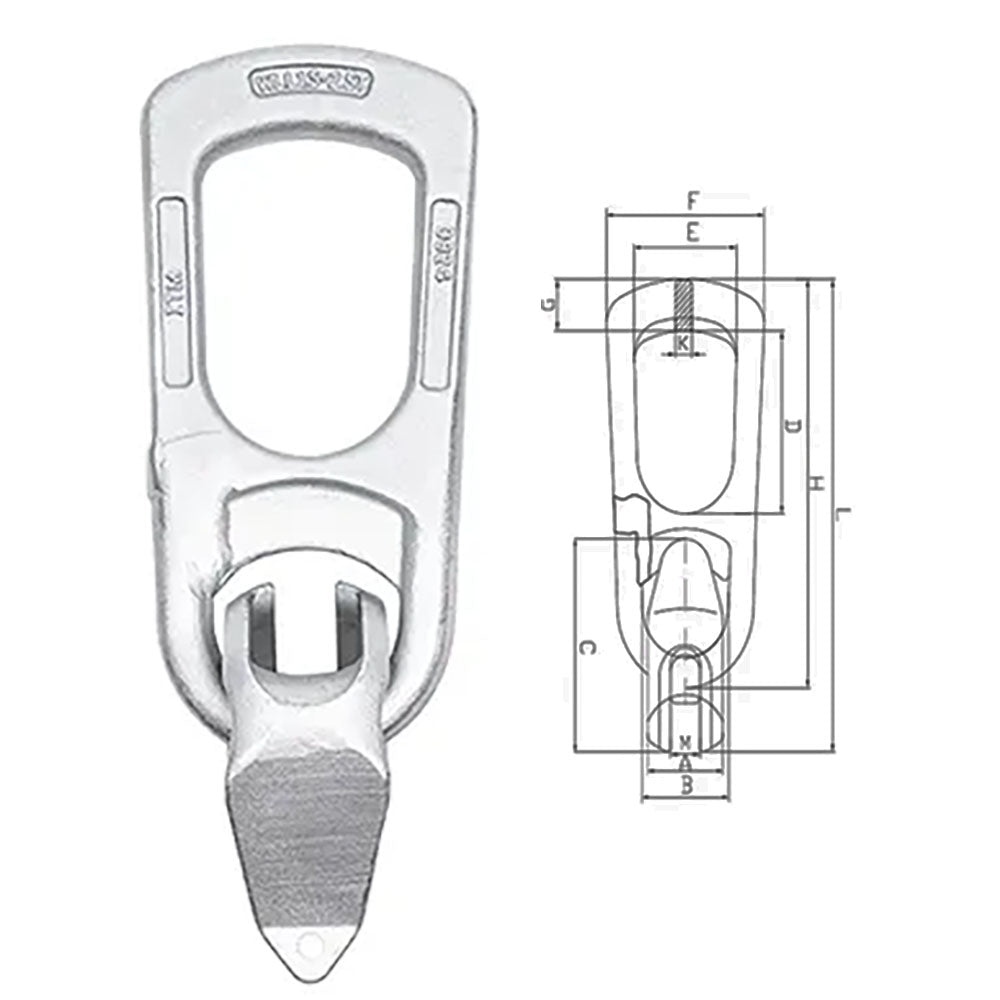

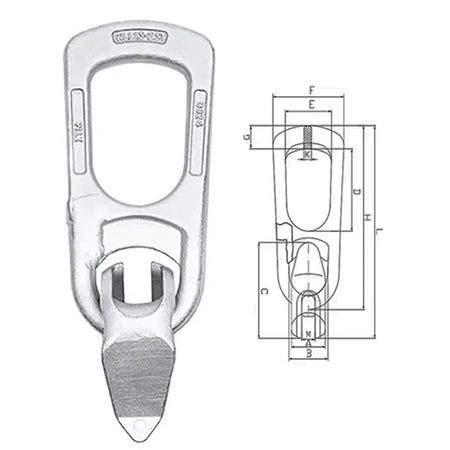

Specifications
- W.L.L. (t): 2.5
- B.L. (t): 10
- Dimension A (mm): 41
- Dimension B (mm): 49
- Dimension C (mm): 102
- Dimension D (mm): 85
- Dimension E (mm): 57
- Dimension F (mm): 88
- Dimension H (mm): 188
- Dimension M (mm): 16
- Dimension L (mm): 227
- Dimension G (mm): 27
- Dimension K (mm): 14
- Weight (kg): 1.3
