ITM Concrete Lifting Clutch Panel Lifter 10T
Buy Now Pay Later available at checkout
TM9814-00100 | ITM Concrete Lifting Clutch Panel Lifter 10T
Features
• Specifically designed for lifting precast concrete elements with an embedded pin
• Easily engages under load, ensuring proper connection
• Simple clutch release when lifting completed
• Available in working load limits ranging from 1.3t to 20t
• Tested and certified to AS 3850.1

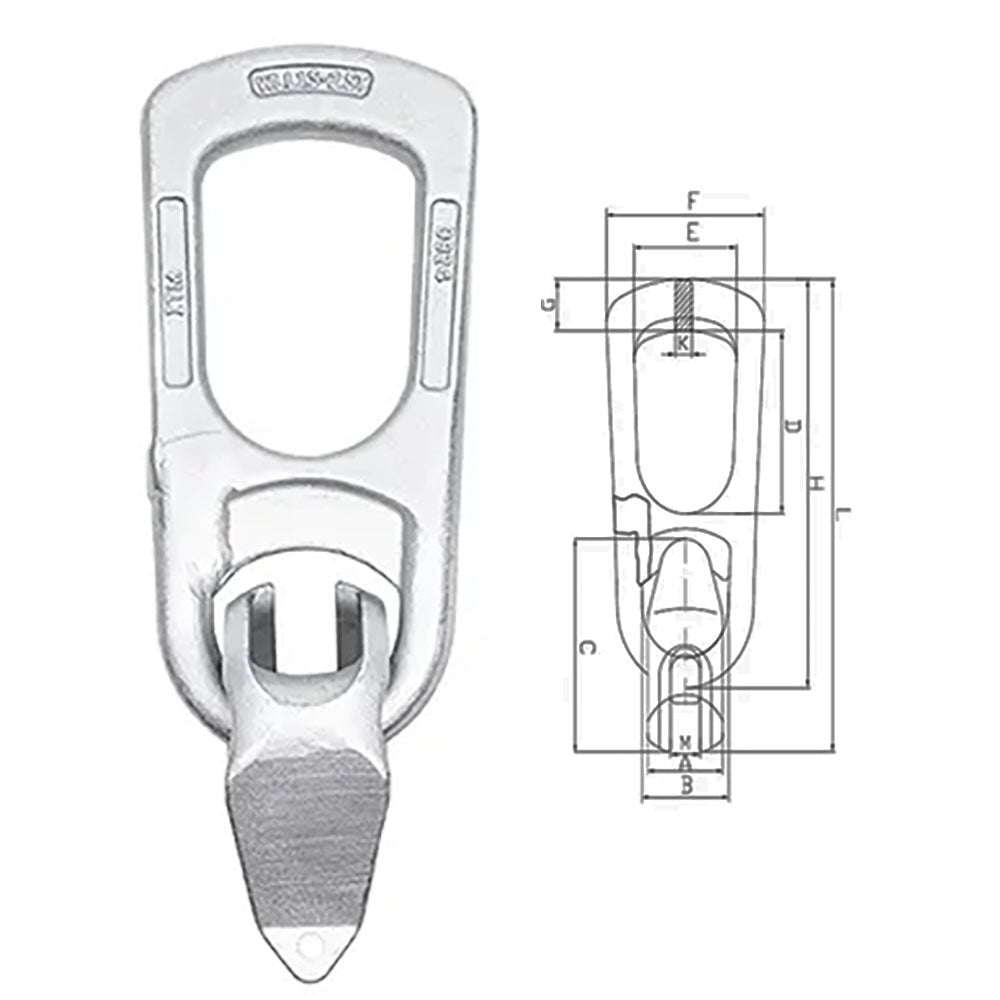

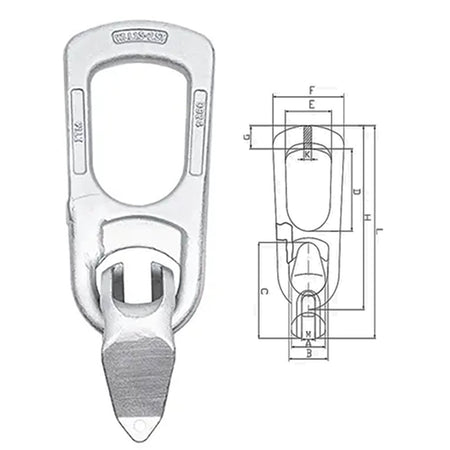

Specifications
• W.L.L. (t): 10
• B.L. (t): 40
• Dimension A (mm): 73
• Dimension B (mm): 92
• Dimension C (mm): 176
• Dimension D (mm): 116
• Dimension E (mm): 83
• Dimension F (mm): 161
• Dimension H (mm): 342
• Dimension M (mm): 30
• Dimension L (mm): 391
• Dimension G (mm): 51
• Dimension K (mm): 27
• Weight (kg): 9.13
