ITM Concrete Lifting Clutch Panel Lifter 1.3T
.
Regular price
$91.45 NZD
inc. GST
Dispatched within 24-48 hours.
Free shipping on $200+ orders. Exclusions may apply.
14-Day Return Policy.
Buy Now Pay Later available at checkout
Got questions? Feel free to get in touch.
Features
- Specifically designed for lifting precast concrete elements with an embedded pin
- Easily engages under load, ensuring proper connection
- Simple clutch release when lifting completed
- Available in working load limits ranging from 1.3t to 20t
- Tested and certified to AS 3850.1

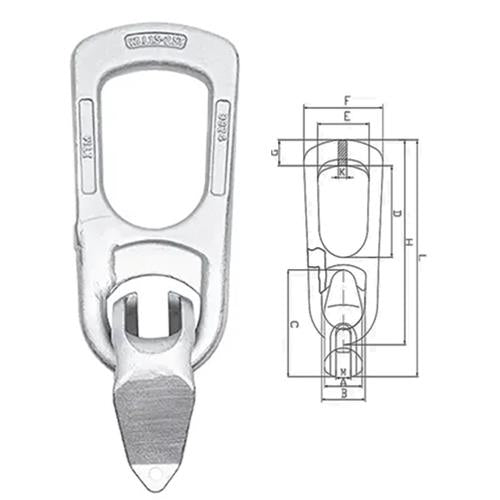

Specifications
- W.L.L. (t): 1.3
- B.L. (t): 5.2
- Dimension A (mm): 33
- Dimension B (mm): 42
- Dimension C (mm): 80.4
- Dimension D (mm): 70.5
- Dimension E (mm): 45
- Dimension F (mm): 73
- Dimension H (mm): 160
- Dimension M (mm): 11
- Dimension L (mm): 186
- Dimension G (mm): 20.5
- Dimension K (mm): 12.5
- Weight (kg): 0.89
