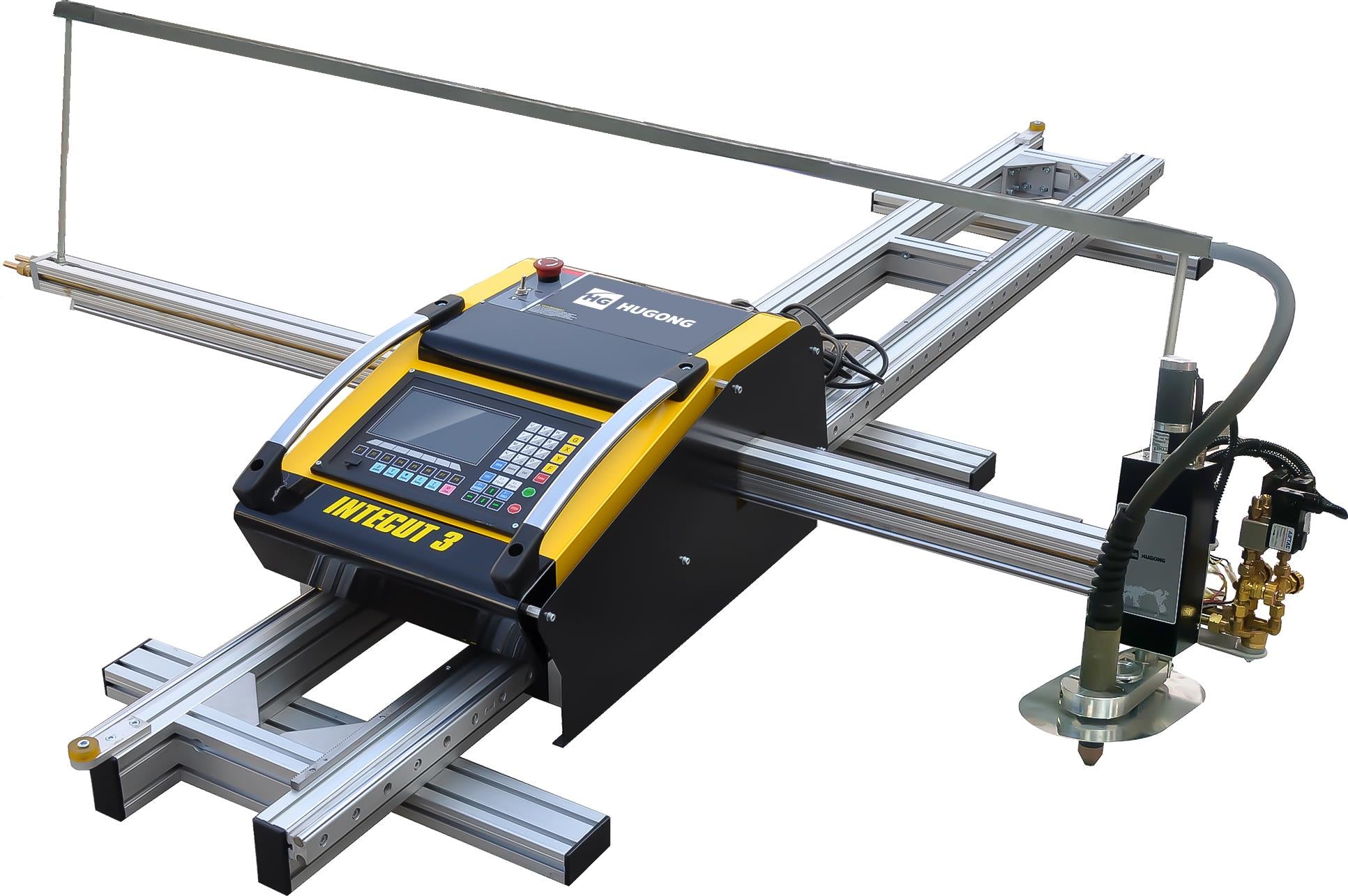

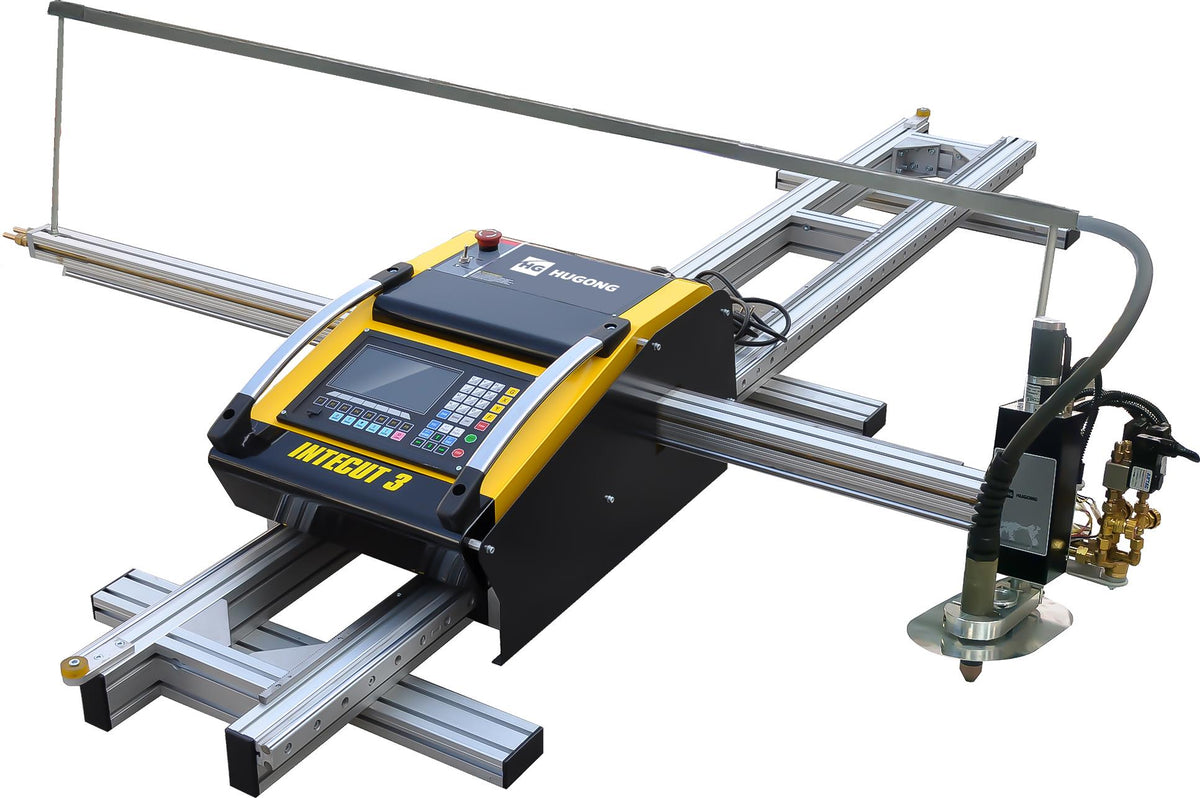

Intecut 3 - Portable CNC Cutting Machine

INTECUT is built using strong alloy to achieve portability and reliability.
CNC is with 7” colorful displayer and interfaces.
44 shapes are in CNC library. It is easy for the user to choose and set the parameters.
Functions are for both flame and plasma cutting.
The program is built in for improving cutting quality, includes speed, pierce time, pulse, motions, etc.
Easy switch between a flame and plasma cutting systems.
Equipped with a USB port to import and export programs.
Compatible with nesting software such as FastCAM, MTC, Turbonest, etc. Drawings from AUTOCAD, TEKLA, and SOLIDWORKS can be easily imported.
Model 3
Input voltage(V) 230
Frequency(Hz) 50
Input power(W) 180
Monitor LCD 5.7”with keyboard
Effective cutting size(W*L) 1220*2000
Position speed(mm/min) Idle speed: 0-6000
Flame cutting speed(mm/min) Cutting speed: 6-750
Transverse arm(mm) 2000
Rail length(mm) 2500
Total weight(Kg) 130kg
Cutting mode Flame/Plasma
Cutting gas Acetylene,Propane,LPG-O2

Model 4
Input voltage(V) 230
Frequency(Hz) 50
Input power(W) 180
Monitor LCD 5.7”with keyboard
Effective cutting size(W*L)
1220*3400
Position speed(mm/min) Idle speed: 0-6000
Flame cutting speed(mm/min) Cutting speed: 6-750
Transverse arm(mm) 2000
Rail length(mm) 4000
Total weight(Kg) 145
Cutting mode Flame/Plasma
Cutting gas Acetylene,Propane,LPG-O2

Model 5
Input voltage(V) 230
Frequency(Hz) 50
Input power(W) 180
Monitor LCD 5.7”with keyboard
Effective cutting size(W*L) 1500*3400
Position speed(mm/min) Idle speed: 0-6000
Flame cutting speed(mm/min) Cutting speed: 6-750
Transverse arm(mm) 2300
Rail length(mm) 4000
Total weight(Kg) 160Kg
Cutting mode Flame/Plasma
Cutting gas Acetylene,Propane,LPG-O2

PLEASE NOTE: PRICE IS INDICATION ONLY, P.O.A
