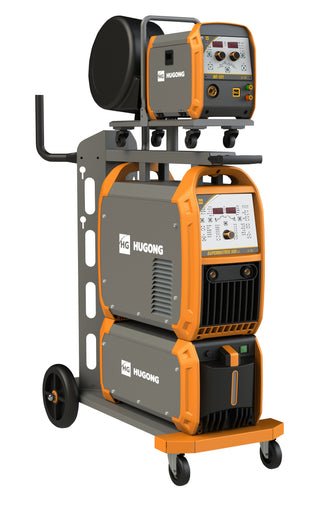

Hugong SUPER MATRIX 500 Pulse
Buy Now Pay Later available at checkout
The Hugong SUPER MATRIX 500 PULSE is a digital multi-function 3 phase machine which caters for industry demanding precision pulse mig application. Featuring top end inverter technology and solid construction, they are built to last. Ideal for large scale workshops working with all metals. With synergic control and the ability to store ideal settings this machine takes the hard work out of the ‘set-up’.
FEATURES:
- IGBT Inverter
- Step-less Amp / Volt Adjustment
- Thermal Overload Protected
- Fan Cooled
- Three Phase
- Generator Safe
- Gas / Gasless Capable
- 2 / 4 Step
- Mig / Stick / Lift Tig
- Pulse / Double Pulse Mig
- Pre / Post Flow
- Pulse Frequency and Ratio
- Arc Force
- Water Cooled
- 4 Roller Drive
TECHNICAL DATA:
Input Power (V): 400
Rated Input Current | 1eff' (A): 24
Max Input Current (A): 38A
Rated Input Capacity (KVA): 27.5
Open Circuit Voltage (V): 80
Welding Current Range (A): GMAW 30 - 500, MMAW 10 - 500
Duty Cycle (A): 40% @ 500
Weight (KG): 112
Wire Feed (mm): 0.8 - 1.6
Electrode Size (mm): 1.6 - 6.0
3 Year Commercial Warranty
