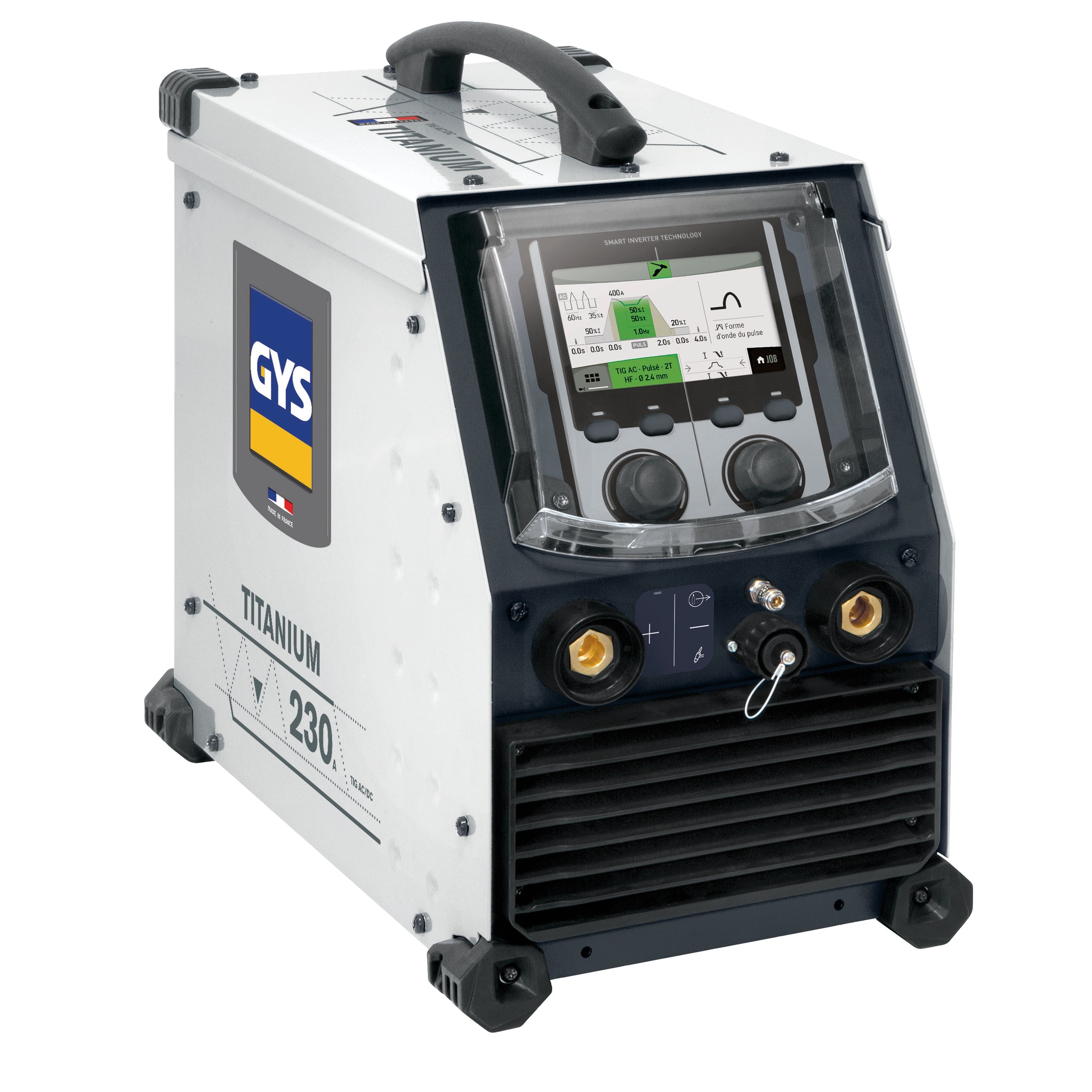

GYS TITANIUM 230 AC/DC FV
Buy Now Pay Later available at checkout
The TITANIUM 230 AC/DC FV is a single-phase AC/DC TIG welding Power Source. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to integrated power factor correction. It combines excellent ergonomic design and user experience, with advanced welding functionality.
SIX TIG WELDING MODES
DC Standard: Smooth welding on the majority of ferrous materials.
DC Pulse: Allows welding while minimizing heat input (up to 2.5 kHz).
Fast Pulse: Pulses up to 20 kHz for specialised steel applications
AC Standard: Welding of aluminum and its alloys (Al, AlSi, AlMg, AlMn,
etc).
AC Pulse: Precise penetration regulation, controllable by adjusting
the AC pulse frequency (up to 500 Hz).
AC Mix: Alternates between AC and DC currents to increase welding
speed.
TIG WIZARD SOLUTION
Patented synergic mode- for maximum productivity with welding and
tacking of Aluminum, Steel, Stainless Steel and Copper parts, with or
without the need for filler material.
Five types of assembly: End to end (BW), Lap (FW), Interior angle
(BP), Exterior angle and wire fusion.
Wizard Lab for the creation of bespoke welding cycles.
OPTIMIZED SETTINGS
Four Tacking Modes:
Spot/Multi Spot: Traditional spotting before welding thin sheets.
Tack/Multi Tack: Ultra-precise pointing without oxidation, reducing the risk of workpiece deformation.
Three Types of Arc Ignition: Standard Lift, High-Frequency (HF) and
Touch. HF (timed high-frequency ignition).
Three Trigger Modes: 2T, 4T and 4T LOG
Configuration of AC waveforms enabling closer arc control and penetration.
E-TIG mode guarantees: the machine to respect the selected welding perimeters, regardless of the position of the torch in relation to the workpiece (welding energy control).
MAXIMUM CONNECTIVITY
•Accurately measures energy usage.
•Traceability of all welding seams, conforming to EN 3834 standard.
•Welding accessory calibration mode (improves the calculation of energy usage).
•Connectable for use with Robots via an optional kit (037960).
•User mode allows the option to share the product with several different operators.
•Free tool for interface customization is available online.
•Backup of user Jobs via USB key (500 max.) as well as machine configuration. Compatible with latch, double button, potentiometer (remove and
push pull torches.)
•New and revised welding synergies and software updates available by USB key.
•Remote control (pedal or remote option) connectable without tools.
•Liquid cooling unit optional (070820).
•MMA, MMA AC and Pulsed MMA modes (electrodes up to Ø 5 mm).
•VRD (Voltage Reduction Device) can be activated to lower the no-load
output voltage to under 35 V.
•«FV» technology guarantees a welding arc that is always stable, even in the event of mains voltage variations (85 to 265 V). It also means that the machine is suitable for use on a generator, or with a very long power cable.
TECHNICAL DATA:
Power Supply (V)-230V 1~
Rated Input Current | 1 eff’ (A)-16
Rated Input Capacity (KVA)-8.5
Freq. AC-20 - 200
TIG AC/DC IA (60%)-190 A
MMA IA (60%)-160 A
Open Circuit Voltage (V)-55
Weight (kg)-22.4
