GYS Stud Capatek 66 FV
Buy Now Pay Later available at checkout

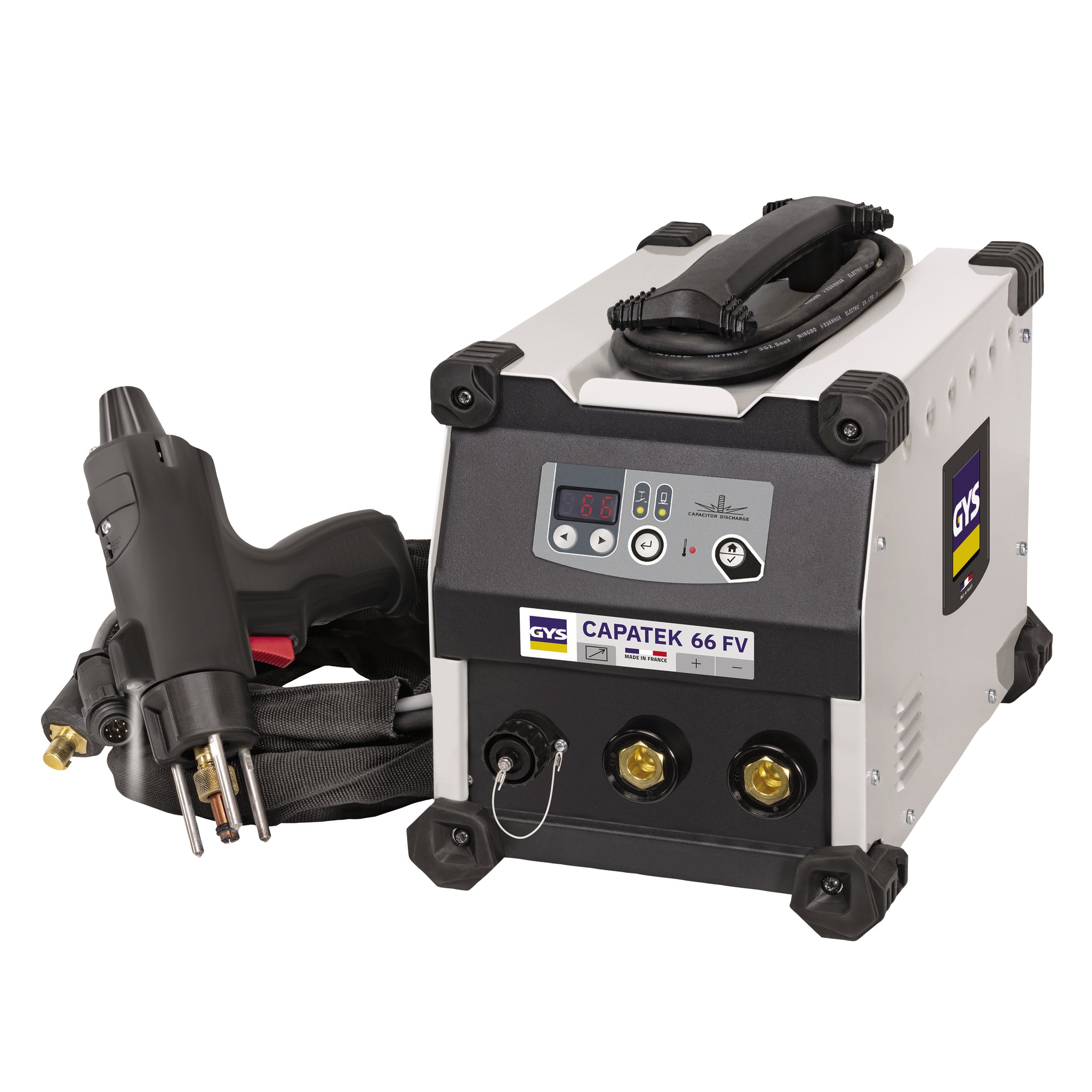

The CAPATEK 66 FV is an industrial shrinkage capacitive discharge generator capable of welding diameter studs M3 to M8 in copper-plated steel, stainless steel, aluminium and brass on thin sheets without marks or deformation. Its ergonomic gun and revolutionary with adjustable shrinkage and effort, ensures an ultra-fast welding rate. Its "FV" technology allows it to be used on all single-phase networks (85 to 265 V).
MAXIMUM PRODUCTIVITY
66 mF capacitor discharge.
Cooldown from 0 to 5 sec.
Wide choice of studs, from M3 to M8.
Length of compatible studs: 6 to 40mm.
CONTACT
GUN Adjustable force from 25 to 100 N with enclosure to prevent unintentional handling.
Independent tripod design with bayonet lock for better gun stability during welding and easy placement of chucks
Trigger for easy control of welding action.
LED lighting of the welding area. Unique presence on the market, several functions:
- LED fast flashing, error, station charging.
- LED slow flashing, reach expected stud counting.
INTUITIVE INTERFACE
Voltage adjustment from 50 V to 200 V.
Locking settings.
Stud counter with adjustable threshold (incremental or decremental).
INDUSTRIAL DESIGN
Surge protected up to 400 V (PROTEC 400).
Reinforced bodywork and anti-shock pads on all external sides.
Easy change of welding polarity by 35/50 bayonet connector.
Comes with two split ground clamps to avoid the effects of magnetic blowing.
Handle with built-in AC cable reel.
Automatic standby.
ON/OFF switch located on the back of the generator.
Active ventilation as needed.
Option & Consumables:
Accessory box with mandrels for studs (M3, M4, M5, M6 & M8) ref. 081000
