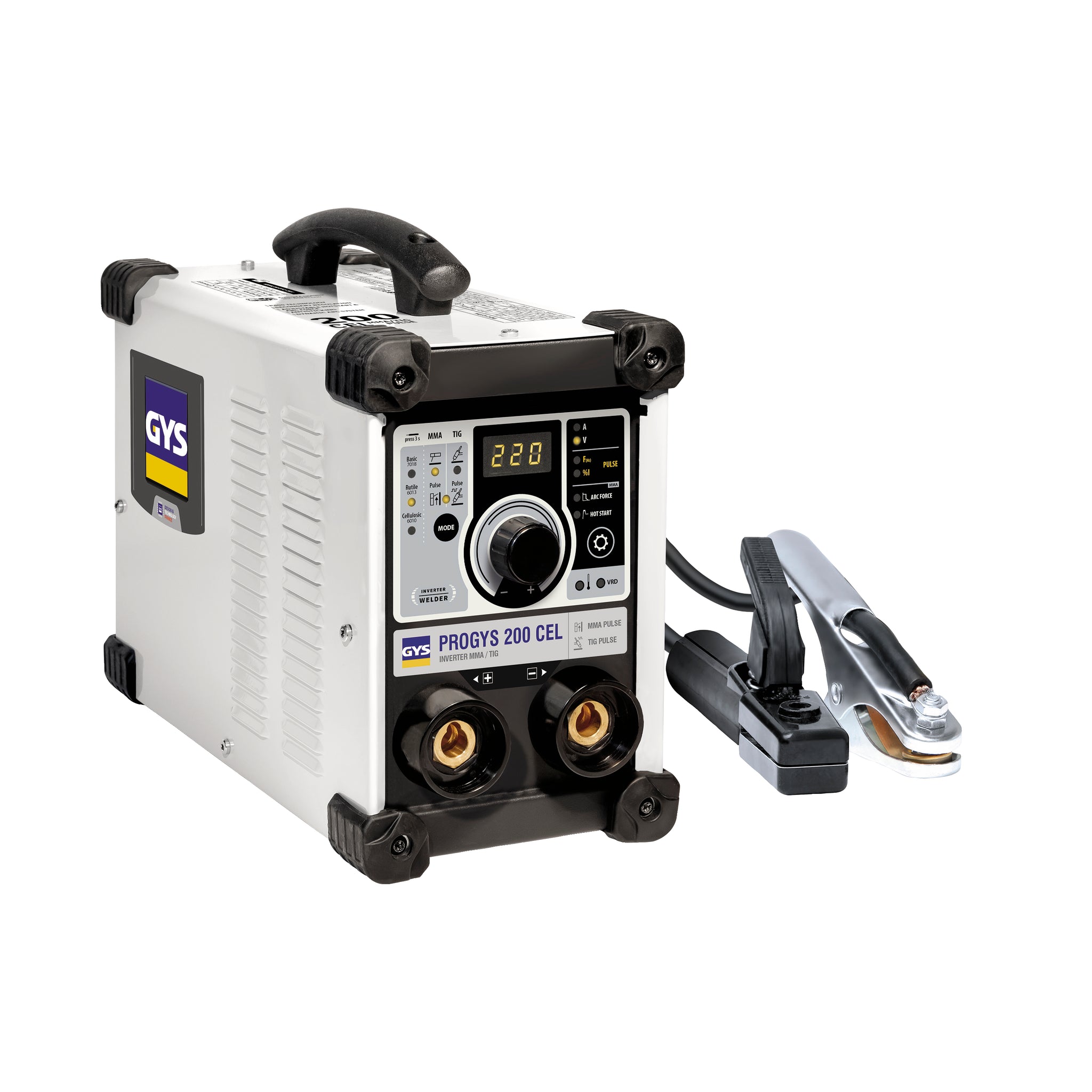

GYS PROGYS 200 CEL
Buy Now Pay Later available at checkout
Designed specifically for professional use, the PROGYS 200 CEL combines the latest welding technology
with an intuitive user interface. The dynamic ignition system means the machine can be used to reliably
weld all types of electrodes up to 5 mm (rutile, basic and cellulosic), in vertical positions, either upwards or
downwards.
4 WELDING MODES
MMA: welds all rutile, basic and cellulosic electrodes (up to Ø 5 mm).
MMA Pulse: ideal mode for rising vertical welding positions (tubing/pipeline, etc.).
Frequency and cold-current percentage can be adjusted.
TIG DC with lift ignition (Ø 1.6 to 2.4 mm).
TIG Pulse: reduces temperature transfer to the workpiece, for welding workpieces as
thin as 0.3 mm.
3 MMA WELDING AIDS
Adjustable Hot Start: facilitates ignition.
Adjustable Arc Force: instantaneous current increase during difficult welding situations.
Antisticking: reduces the risk of electrode sticking in the event of contact with the
workpiece.
MAXIMUM PRODUCTIVITY
35/50 mm²
Ø 13 mm
Supplied with accessories
Select the type of electrode for optimal welding performance (predefined parameters).
Current and voltage display during and after welding (DMOS/QMOS).
Improved cooling system with ventilation tunnel, to prevent ingress of external pollution.
USER PROTECTION
3 m - 25 mm²
Choice of electrode type
VRD (Voltage Reduction Device) can be activated to reduce the no
load output voltage to < 35 V.
3 m - 25 mm²
4 welding modes available:
MMA, MMA Pulse, TIG Lift, TIG Pulse
RÉSISTANT
Reinforced casing and anti-shock protection on all external surfaces.
Protected against overvoltage up to 400 V (PROTEC 400).
ULTRA PORTABLE
Lightweight (6.4 kg without accessories), compact and portable for
on-site use.
Supplied with electrode holder (3 m) and earth cable (3 m).
