Groz 1/2in BSP F-R-L Unit 99CFM / 2800LPM
Buy Now Pay Later available at checkout

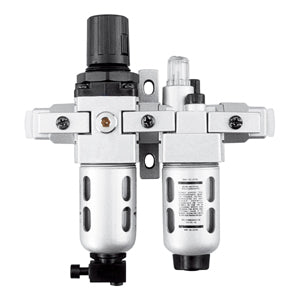

GZ60407 - GROZ Air Filter-Regulator-Lubricator Combination Unit Space saving 2 pc Modular Filter-Regulator Combination & Lubricator is by far the most popular Air Preparation unit. The Filter-Regular Combination & Lubricator are attached in series using spacers & piping adapters which makes the 2 components easily removable / mountable without disturbing the pipe line. Come complete with a wall mounting bracket. Air Filter is used to separate dust dirt moisture & other contaminants from compressed air. Filter has a Die Cast Aluminium body polycarbonate bowl with a steel bowl guard & a high performance Sintered Bronze Filtering element. Filter is designed with a Separator & shield for efficient moisture separation. Regulator maintains a steady outlet pressure unaffected by variations/ fluctuations in the inlet pressure. Regulators have a Non Raising “Press to Lock” adjusting knob for locking at any set pressure. Regulators work on a Diaphragm operated relieving type mechanism with pressure compensated by balanced poppet. Air Lubricators are used to feed lubricants to pneumatic equipments. These maintain a constant oil-to-air density over a wide range of flow. Lubricators are Fog/Micro Mist type upto 15m / 50ft pipe runs. Designed for best performance with 32 grade oil. These have a Die Cast Aluminium Head polycarbonate bowl with a steel bowl guard. The head is fitted with Oil drop indicator Oil drop controller & Oil filling plug
- Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR)
- 40 micron filtering element
- Press Type Manual Drain with Night Time Drain feature which automatically drains off the bowl once the compressed air supply to the filter is switched off. WETTED COMPONENTS: Aluminium Bronze Brass Steel Acetal Polycarbonate Stainless Steel & Nitrile FRCLM-15 Type STANDARD COMPLETE WITH 42MM GAUGE Max flow rate: 99 CFM / 2800 LPM Min flow rate: 1.59 CFM / 45 LPM Bayonet Type Steel Bowl Guard Regulator with in-built Venturi for Flow Compensation CONFORMS TO ISO 6953-1 5782-1 & 6301-1 WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils thinner solvents trichloroethylene kerosene or other aromatic hydrocarbons
