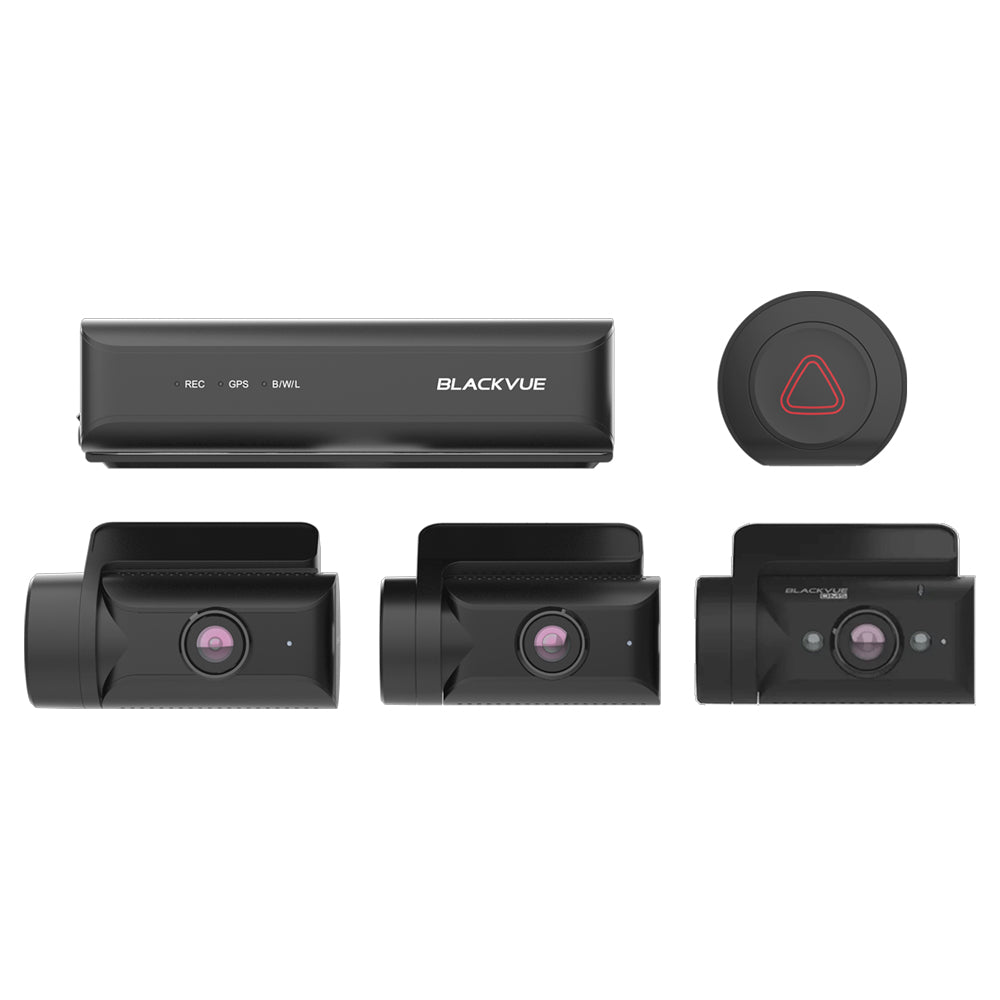

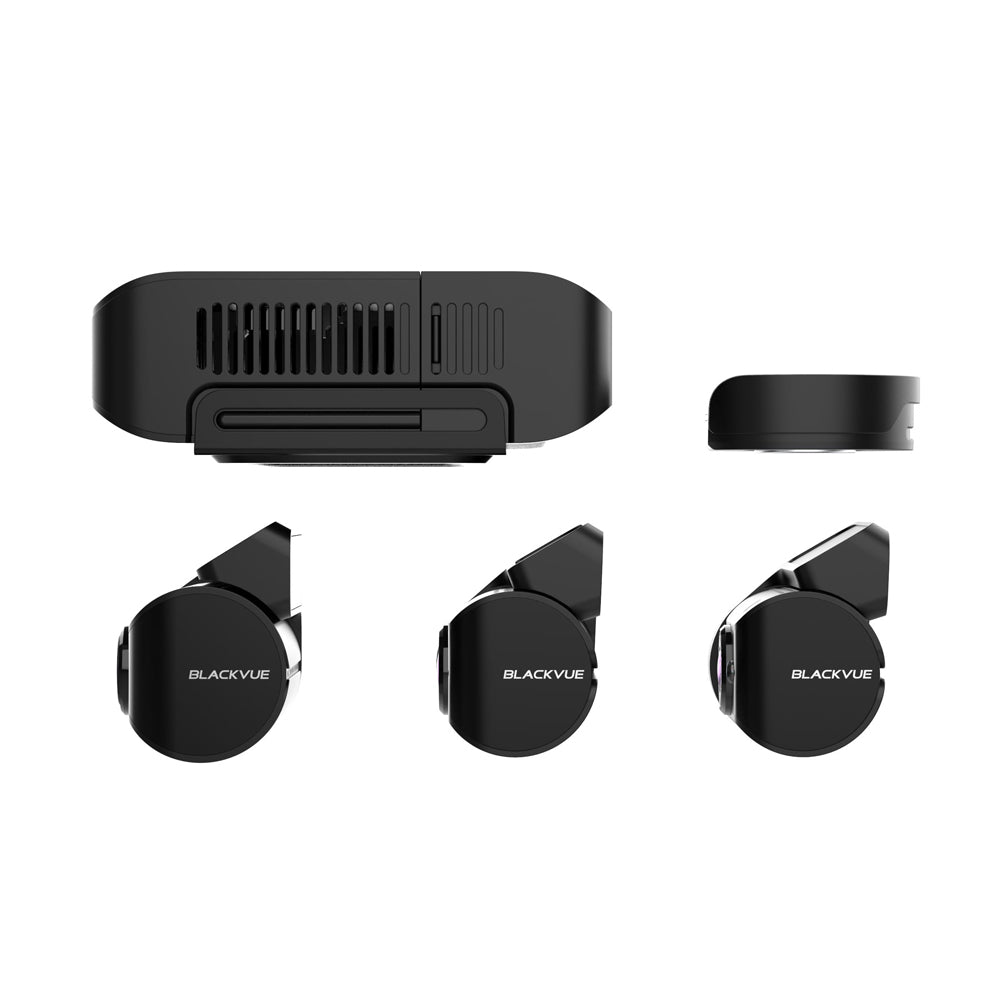

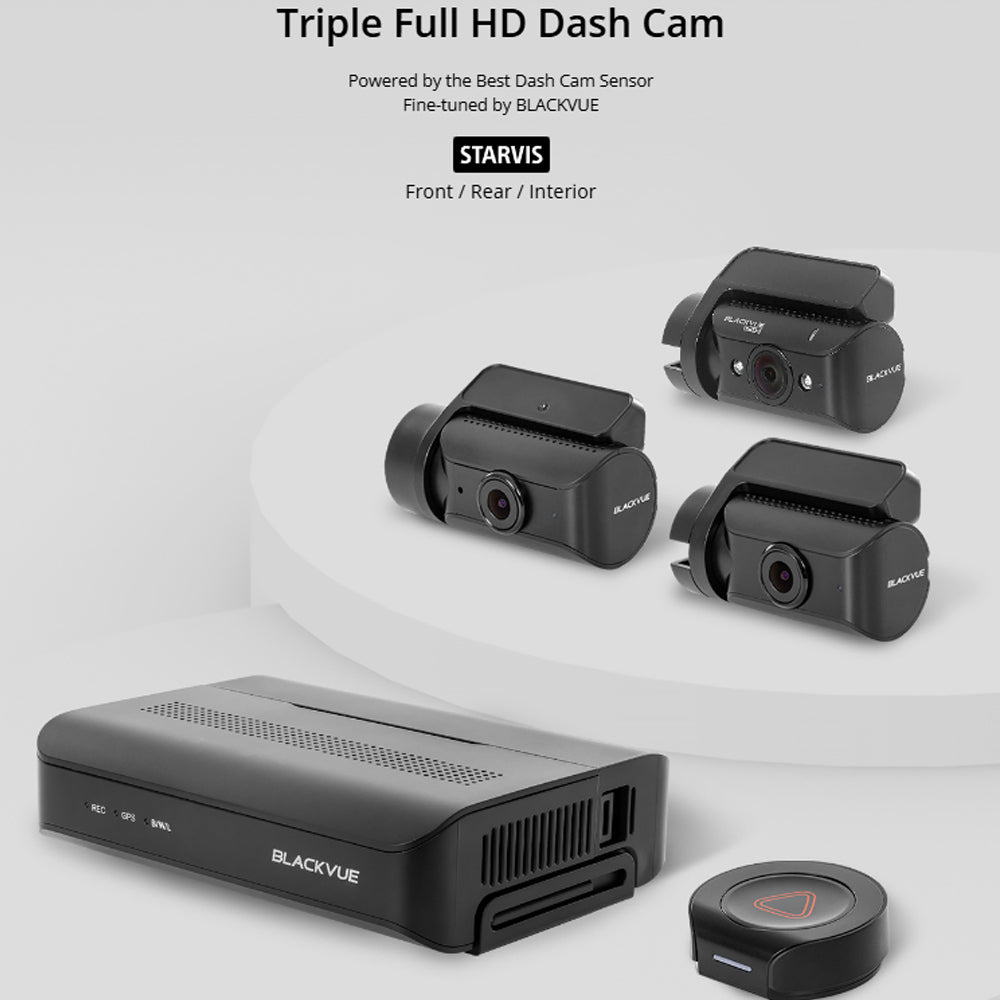

Blackvue Dr770x Box Pro 3-Ch Camera System With Central Record Box Dms System 1080 Hd Dashcam 64 Gb

BlackVue DR770X Box-3CH DMS Pro combines triple camera protection and AI-powered Driver Monitoring System. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

• Model Name DR770X Box-3CH DMS Pro
• Channel 3CH
• Highlights Full HD + Full HD + Full HD (Front + Rear + DMS), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
• Product Dimensions Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
• Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
• Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
• DMS : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
• EB-1(Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
• Rear Camera Connection Coaxial cable
• Memory Support microSD card up to 512GB
• Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
• When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode
• Parking Mode YES (hardwiring cable included)
• Parking Mode Event Voice Notifications YES
• Imaging Sensor Front : STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear : STARVIS CMOS Sensor (Approx. 2.1 M Pixel) dms : starvis cmos Sensor (Approx. 2.1 M Pixel)
• Viewing Angle Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
• Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
• DMS(RC1-DMS-C) : Diagonal 109°, Horizontal 94°, Vertical 52°
• Resolution Frame Rate Front / Rear / DMS
• Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
• *Frame rate may vary during Wi-Fi streaming
• Video Codec H.264 (AVC)
• Image Quality and Bitrate Front/Rear Front / Rear / Interior
• Highest(Extreme): 16 + 10 + 10 Mbps
• Highest: 12 + 10 + 10 Mbps
• High 10 + 8 + 8 Mbps
• Normal: 8 + 6 + 6 Mbps
• Format Free YES (Adaptive)
• Event File Overwrite Protection YES (up to 51)

Specifications

• SD Card Failure Alert YES
• Scheduled Reboot YES
• Video File Extension MP4
• Wi-Fi Built-in (802.11 b.g.n)
• Cloud Compatible YES
• GPS External (Dual Band : GPS, GLONASS)
• Microphone Built-in
• Speaker Built-in
• Impact Sensor 3-Axis Acceleration Sensor
• LED Indicators Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
• Front : Front & Rear Security LED
• EB-1 : Operating/Battery low voltage LED
• Rear Camera IR Illumination DMS: 940nm (2 Infrared (IR) LEDs)
• Button EB-1 button : Press the button – manual recording
• Operation Temperature -20°C – 70°C (-4°F – 158°F )
• Storage Temperature -20°C – 80°C (-4°F – 176°F )
• High Temp Cut Off Approx. 75 °C (167 °F)
• Backup Battery Built-in supercapacitor
• Input Power DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour Normal Mode (GPS On/3CH) : Avg. 750mA/12V

• Parking Mode (GPS Off/3CH) : Avg. 600mA/12V
• Approx.40mA increase in current when Interior Camera IR LEDs are ON
• *Approx.40mA increase in current when DMS Camera IR LEDs are ON
• *Approx.60mA increase in current when Rear Truck Camera IR LEDs are ON
• *Actual power consumption may vary depending on use conditions and environment
• Certifications Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
• Rear: Fcc, ic CE, ukca, rcm, RoHS, WEEE, KC
• Software BLACKVUE Viewer
• Windows 7 or higher, Mac Sierra OS X (10.12) or higher
• BLACKVUE Web Viewer
• Chrome 71 or higher, Safari 13.0 or higher
• Application BLACKVUE Application
• Android 8.0 or higher, iOS 13.0 or higher
• Others Adaptive Format Free File Management System
• Bluetooth Built-in (V2.1+EDR/4.2)
• LTE External (optional)

Warning

The front camera cable must be connected to the “Front” port. Connecting it to rear camera port will give a warning beep sound.

The “Rear” and “Optional” cables can be interchangeably connected. However the File output name will Start from “R” in case of Rear and “O” in case of Optional.
