Avs 9" Quad Dash Mount 4 Pin 12-24 Volt Lcd Monitor With Quad View
Buy Now Pay Later available at checkout
Model: AVSRM90CQUAD

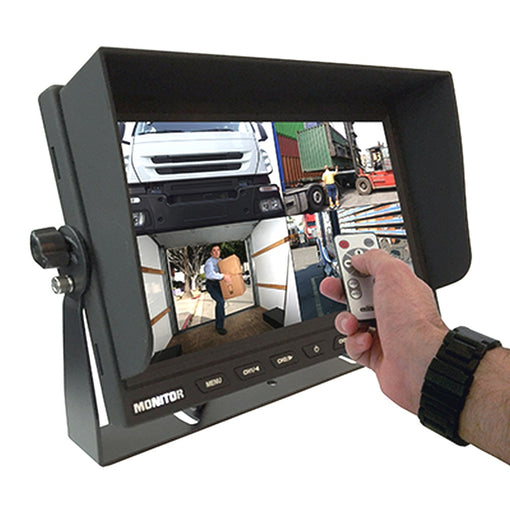

This extra large 9” commercial LCD monitor has the advantage of being able to view up to four cameras on the screen at the same time.
• Extra large 9” high resolution commercial colour multi view LCD monitor
• Suitable for 12 to 24 volt vehicles (note: if fitting to a 24 volt vehicle the camera must be powered from the LCD monitor the camera CANNOT be connected directly into the vehicle’s 24 volt power supply)
• Wide screen 16:9 display
• Sunshade for the monitor
• 4x 4-pin inputs for up to four cameras (includes 12 volt power to the cameras)
• The monitor can display 1 2 3 or 4 cameras in 9 different configurations
• The camera image can be displayed reverse or non reverse allowing the monitor to be mounted at the front or rear of the vehicle
• Individual switching wire for each camera – this means the monitor will automatically switch to display the camera image for the input even if the monitor is not turned on. For example if using with a reversing camera when the vehicle is in reverse gear the LCD monitor will automatically switch to display the rear camera image. Cameras could also be installed on
the left/right side of the vehicle and if the left/right indicators turn on the monitor will automatically switch to display the corresponding side’s camera.
• Adjustable display settings
• On screen display (OSD) with remote or push button control
• Switch between camera views with easy push button on screen or by remote
• Heavy duty 4-pin connectors - female plugs
• Will accept both PAL and NTSC format cameras
• Dimensions:
Screen with hood: 235 x 157 x 77mm
• Total dimensions: 265 x 175 x 87mm (bracket height not adjustable)
• Add your choice of 5 10 15 20 or 25m 4-pin extension cable
