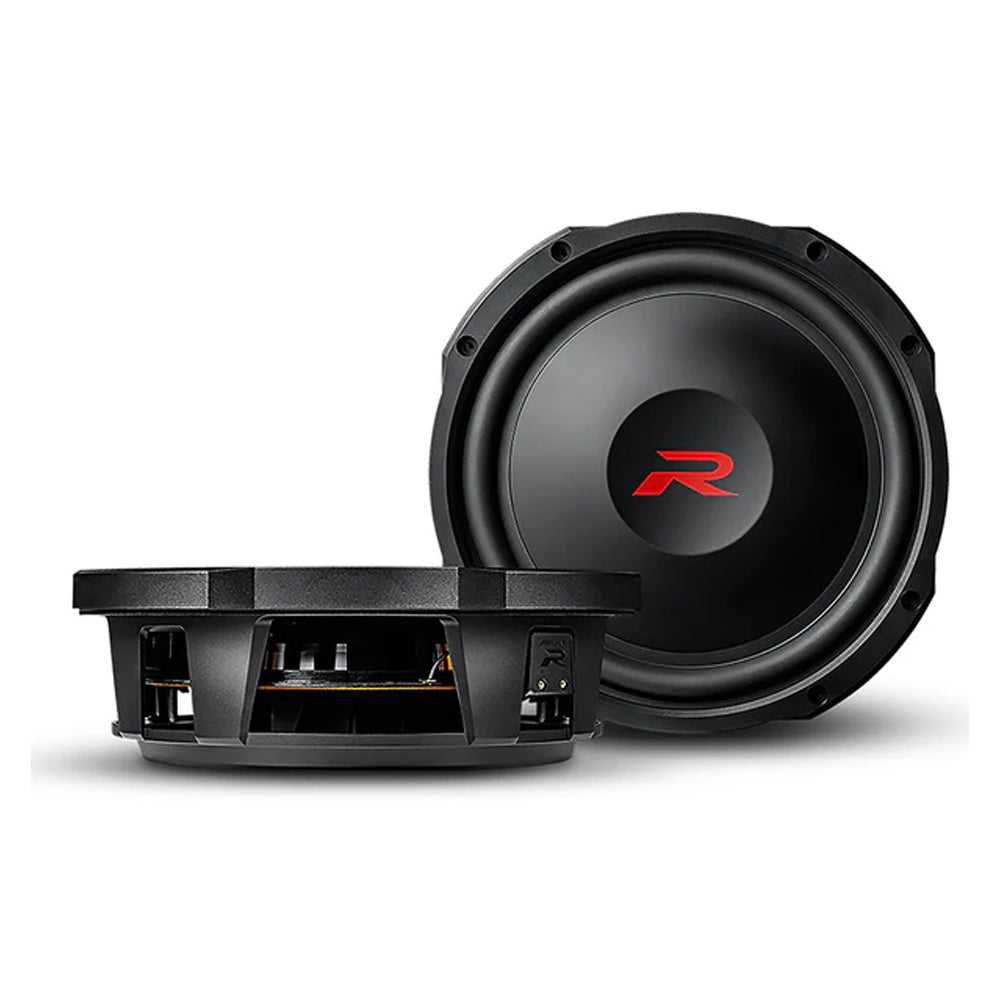

Alpine 12" Subwoofer R Series 4 Ohm Shallow Profile
Buy Now Pay Later available at checkout
12" shallow-profile subwoofer for compact car audio installs where space is tight. Dual 4Ω voice coils, 600W RMS / 1800W peak handling. Cast aluminium frame with neodymium magnet and 20mm X-max for linear bass output across 26–200 Hz. Mounts in 295 mm diameter x 81.7 mm depth. Heavy-gauge screw terminals; compatible with optional KTE-RS12G mesh grille.
Specifications:
- Driver size - 12 inch
- RMS power handling - 600W
- Peak power handling - 1800W
- Nominal impedance - 4Ω + 4Ω (dual)
- X-Max - 20mm
- Frequency response - 26–200 Hz
- Sensitivity - 81 dB (1W/1M)
- Voice coil - 4 inch (102mm)
- Mounting diameter - 295mm
- Mounting depth - 81.7mm
- Frame material - Cast aluminium
- Magnet type - Neodymium
