Micrometer & Caliper Buying Guide NZ: Digital, Vernier or Dial?

For most measuring jobs in a NZ workshop you want two tools: a caliper for quick, general measurements of outside, inside, depth and step sizes, and a micrometer when a single dimension has to be held much tighter. Choose a caliper by length (150mm suits most benches) and by how you want to read it (vernier, dial or digital). Choose a micrometer by its 25mm range band, its resolution (0.01mm on a standard thimble, 0.001mm on a digital micrometer), and whether it needs to survive coolant.

Micrometers and calipers: what each one does

A caliper has a fixed jaw and a sliding jaw on a long beam. One tool measures outside diameters, bores (with the small inside jaws), depths (with the depth rod) and steps. It covers a big range quickly, which makes it the everyday tool for fitting, fabrication and checking stock.

An outside micrometer (often searched as "micro meter" or "micrometer screw gauge") closes a spindle onto an anvil using a fine screw thread. It measures one thing, an outside dimension, but it does it more precisely than a caliper of the same resolution class because the screw gives fine control and a ratchet or friction thimble applies a consistent measuring force. The trade-off is range: each micrometer covers a fixed band, such as 0-25mm or 25-50mm.

There are also specialist micrometers for depths, inside diameters, screw threads, sheet metal, tube walls and brake discs. This guide sticks to outside micrometers and general-purpose calipers.

Vernier vs dial vs digital calipers

Vernier caliper

You read the main scale on the beam, then find the line on the sliding vernier scale that lines up exactly with a beam line. No battery, nothing to fail, and it works in any light you can see the scale in. It takes practice to read quickly and accurately. Common graduations are 0.05mm and 0.02mm.

Dial caliper

A rack on the beam drives a needle on a dial, so you read whole millimetres from the beam and the fraction from the dial. It is faster to read than a vernier and still needs no battery. Keep the rack clean: grit in the teeth can make the needle jump.

Digital caliper

A digital caliper shows the reading on an LCD, usually at 0.01mm resolution, and switches between metric and imperial. You can zero it at any position, which makes comparison measurements (is this part bigger or smaller than that one?) very quick. It needs a battery, and cheaper units can be sensitive to coolant and dust unless they carry an IP rating.

What to look for

Range

A 150mm (6") caliper covers most bench work and fits in a drawer or apron. Step up to 200mm or 300mm if you regularly measure larger stock. Micrometers come in 25mm bands, so buy the band your parts fall in, or a set if your work spans several sizes. The Mitutoyo outside micrometer we list runs in 25mm steps from 0-25mm up to 225-250mm.

Resolution is not accuracy

Resolution (or graduation) is the smallest step the tool displays. Accuracy is how far the reading can be from the true size. A digital micrometer showing 0.001mm is not necessarily accurate to 0.001mm. Check the maker's accuracy or maximum permissible error figure where it is given. For example, Mitutoyo lists its 293-230-30 digital micrometer at 0.001mm resolution with a maximum permissible error of ±1 µm, and its 500-752-20 digital caliper at 0.01mm resolution with ±0.02mm.

Digital micrometer or standard thimble?

A standard micrometer reads to 0.01mm off the sleeve and thimble and needs no battery. A digital micrometer reads to 0.001mm on an LCD, removes reading errors, and on some models can send readings to a computer. If you only check bearing fits occasionally, a good mechanical micrometer is fine. If you are recording lots of measurements or working to tight tolerances, digital pays for itself.

IP rating and coolant

An IP rating tells you how well a digital tool is sealed against dust and water. If the tool will live near a lathe, mill or grinder with coolant or cutting oil, look for a rated model. Mitutoyo describes its IP65 digital micrometer as suitable for use where coolant or cutting oil is present, and its IP67 digital caliper as coolant and dust proof. Vernier and dial tools have no electronics to protect, but still need wiping down.

Data output

Some digital tools have a data port so readings can be logged straight to a PC, which is useful for inspection records. If you will never log readings, a model without data output does the same measuring job.

Measuring faces and force

Carbide measuring faces resist wear. A ratchet stop or friction thimble lets you apply the same force each time, which matters more than most people expect when comparing readings.

Comparison: micrometers and calipers in stock

How to choose by job

• Home workshop, hobby and general fabrication: a 150mm caliper does nearly everything. The Teng vernier needs no battery; the Teng digital caliper is quicker to read.

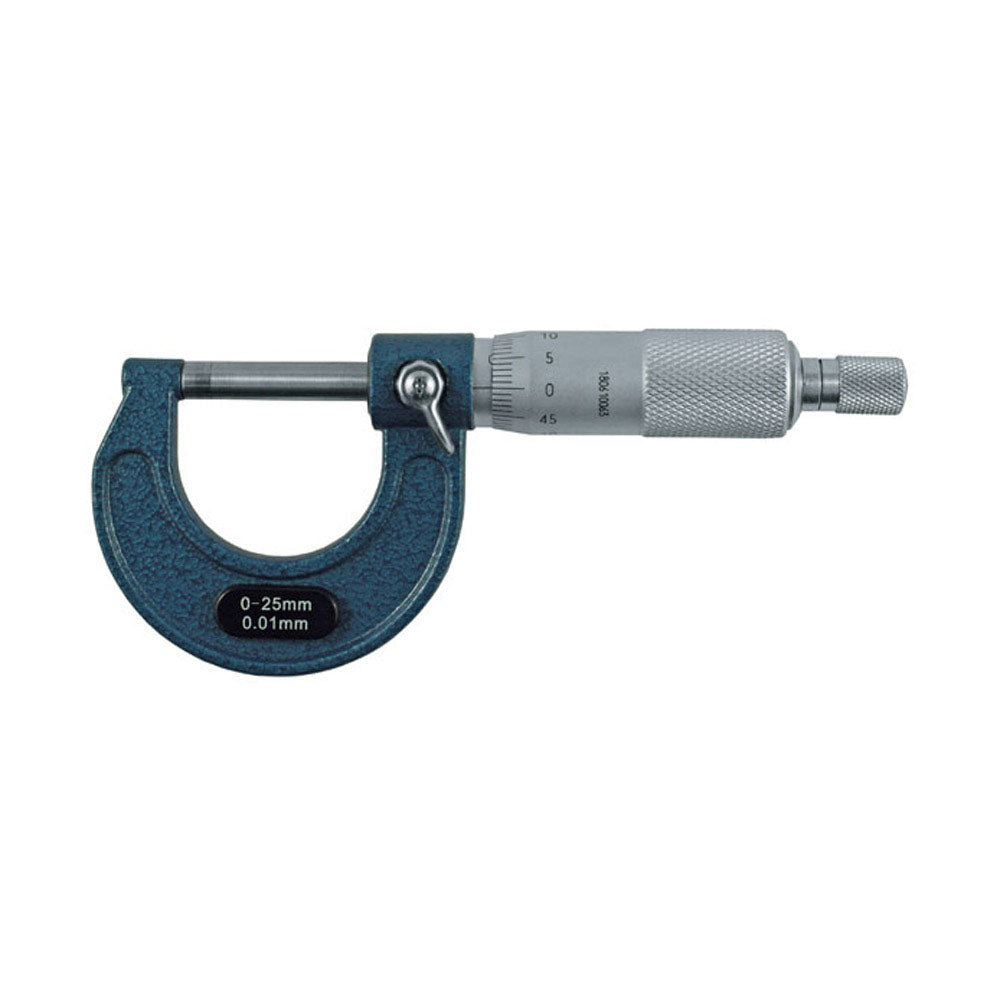

• Automotive and engine work: pair a caliper with a 0-25mm and 25-50mm micrometer for shafts, pins and shims. The ITM and Mitutoyo outside micrometers cover this.
• Machining near coolant: go for sealed digital tools such as the Mitutoyo IP67 caliper and the Mitutoyo IP65 Digimatic micrometer.
• Inspection and QA: choose tools with a published permissible error and, where you need records, data output.
• Tough site conditions or long storage: a vernier or dial caliper has no battery to go flat.

Care and use tips

• Wipe the measuring faces clean before every measurement. A film of oil or a chip will show up in the reading.
• Check zero before use: close a 0-25mm micrometer or caliper jaws gently and confirm it reads zero. Larger micrometers are checked against a setting standard.
• Use the ratchet or friction thimble on a micrometer, not the thimble itself, so the measuring force stays consistent.
• Measure parts at room temperature. Hot work straight off the machine will read large.
• Don't use a caliper as a scriber, clamp or spanner, and don't drop it: knocks can damage jaws and the dial rack.
• Store tools in their case with the micrometer faces slightly apart, lightly oiled on bare steel surfaces, and remove batteries from digital tools you won't use for a while.

FAQ

What is the difference between a micrometer and a vernier caliper?

A vernier caliper measures outside, inside, depth and step sizes over a long range, typically to 0.02mm or 0.05mm graduations. A micrometer measures one type of dimension over a 25mm band and resolves finer, to 0.01mm on a standard model or 0.001mm on a digital one.

Is a digital micrometer the same as a micrometer screw gauge?

"Micrometer screw gauge" is another name for a micrometer. A digital micrometer is a micrometer screw gauge with an electronic readout instead of (or as well as) the sleeve and thimble scale.

What size digital calipers should I buy?

150mm suits most people. Choose 200mm or 300mm only if you regularly measure parts that won't fit a 150mm jaw.

Do I need an IP-rated caliper or micrometer?

Only for digital tools that will be used around coolant, cutting oil, water or heavy dust. In a clean, dry workshop an unrated digital tool or a vernier works fine.
