Air Pressure Regulators & Air Hoses: Workshop Compressor Guide

An air pressure regulator sits between your compressor and your tools and holds the outlet pressure steady at whatever you set it to, below the line pressure coming in. For most workshop compressors the practical choice is a filter-regulator (or a full filter-regulator-lubricator) sized to your port thread and air demand, then an air hose with the right bore, length and fittings for the tools you run.

What an air regulator does

Tank pressure rises and falls as the compressor cycles. A regulator steps it down and holds the outlet steady even when the inlet fluctuates. Set it to the pressure the tool or spray gun maker specifies; more pressure than that just wears the tool faster.

Types of air pressure regulator

Stand-alone regulator

Regulation only, usually with a gauge, for air that is already filtered upstream. The Groz 1/4in BSP Regulator is a miniature type with a 42mm gauge, and Groz states it can be installed in any position.

Filter-regulator (F-R)

A filter and a regulator built as one unit. The filter separates dust, dirt and moisture before the air reaches the regulator, and the bowl collects water for draining. The Groz 1/4in F-R Unit and the AmPro Air Filter / Regulator are both this type.

Filter-regulator-lubricator (FRL)

Adds a lubricator that feeds a fine oil mist into the air for air tools that need oiling. The Groz 1/4in BSP F-R-L Unit pairs a filter-regulator with a micro-mist lubricator and comes with a wall bracket; Groz says the lubricator is designed for 32 grade oil. Do not put a lubricator on a line that feeds spray guns or blow guns, because oil in the air ends up in the paint or on the job.

In-line and gun-mounted regulators

Small regulators at the tool end of the hose for fine control at a spray gun, used alongside a main regulator. See the air regulators collection.

What to look for in a pneumatic pressure regulator

Port size and thread

Match the regulator ports to your pipework or compressor outlet. Common sizes are 1/4in, 3/8in and 1/2in. Check the thread standard too: the Groz units are BSP, while the AmPro unit is listed with NPT threads. BSP and NPT are different thread forms, so use the correct fittings or an adaptor rather than forcing one into the other.

Flow rate

An undersized regulator starves the tool even when the gauge looks right. In the Groz range, the 1/4in regulator is rated to 21 CFM (600 L/min) and the 1/2in to 140 CFM (4,000 L/min). Pick a unit whose rated flow covers the tools you run at once.

Pressure range

Look at two numbers: the maximum inlet pressure the unit accepts, and the outlet range you can set. Your compressor's maximum pressure must not exceed the regulator's maximum inlet rating. The Groz filter-regulators list an adjustment range of 7-145 PSI (0.5-10 bar), and the AmPro lists a maximum input of 215 PSI and an output range of 7-142 PSI.

Filter element and drain

Filter ratings are given in microns; smaller means finer. The Groz F-R units use a 40 micron sintered bronze element, while the AmPro uses a 5 micron element, which suits spray painting where fine contaminants show up in the finish. The Groz F-R units also have a manual drain with a "night time drain" feature that empties the bowl when the air supply is switched off.

Bowl material

The Groz F-R and FRL units use polycarbonate bowls with steel guards. Groz warns that polycarbonate bowls can be damaged and may fail if exposed to synthetic oils, thinners, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons, so keep those away from the unit.

Choosing an air hose for your compressor

Hose material

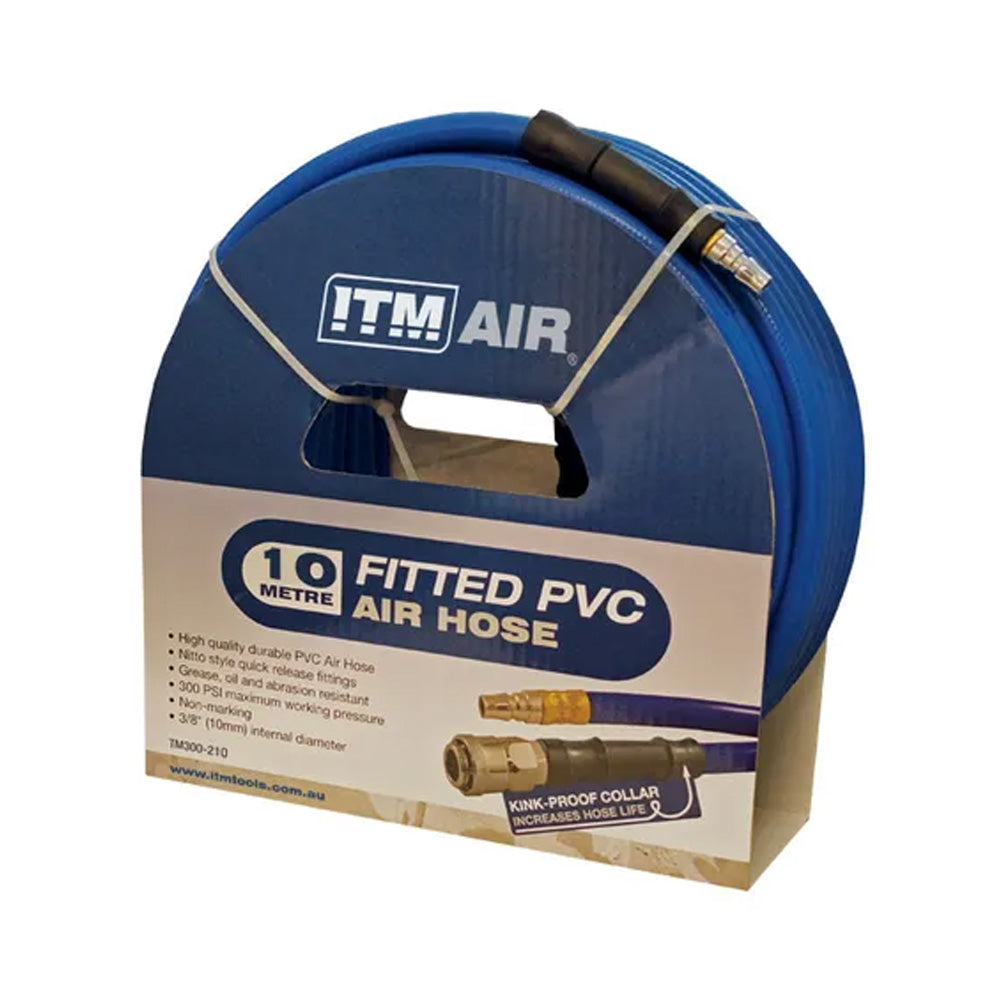

• PVC: the budget choice for general workshop use. The ITM PVC Air Hose with couplers is described as non-marking and grease, oil and abrasion resistant.
• Rubber: heavier, but lies flat and handles rough treatment. The Tooline Rubber Air Hose comes in 10m and 20m lengths.
• Hybrid polymer: designed to stay flexible across a wider temperature range and resist kinking. ITM rates its hybrid hose for -5°C to 65°C and says it will not kink under pressure.
• Polyurethane (PU): light and commonly sold as recoil hose that springs back into a coil, which keeps it off the floor at a bench or in a vehicle.

Bore size and length

Bore (internal diameter) and length go together. A longer or narrower hose loses more pressure between the regulator and the tool, so higher-demand tools on longer runs need a larger bore. Most workshop hoses we stock are 10mm (3/8in) bore; ITM also offers 12.5mm (1/2in) hybrid hose for longer runs, and smaller PU recoil hoses such as the 8 x 12mm suit lighter tools. Note that PU hose is often sized by inside x outside diameter, so "8 x 12mm" means an 8mm bore.

Working pressure

Keep the hose's rated working pressure above anything your compressor can deliver. The ITM PVC and hybrid hoses are listed at 300 PSI maximum working pressure.

Fittings

Many NZ workshop hoses use Nitto-style quick couplers. Couplers and plugs must be the same profile to connect, so check what your compressor and tools already use before buying hose with fittings attached. Spare couplers such as the Champion 1/4in Female Nitto Coupling are listed in air hoses and accessories.

Retractable air hose reels

A retractable air hose reel mounts on the wall, pays out the hose you need and rewinds the rest. Check hose length, bore and material, working pressure, leader hose length, whether it locks at any length, and the bracket swivel. The ITM Retractable Air Hose Reel 20M carries 10mm hybrid polymer hose, locks at any length, has a 2m leader hose and a detachable 180° swivel bracket, and is rated to 250 PSI. More options are in the hose reels collection; some reels there are for pressure washers or water, so check the listing says air.

Comparison: in-stock regulators and hoses

How to choose by job

• General workshop air (blowing down, tyre inflation, impact wrench): a filter-regulator at the compressor plus a 10mm PVC or hybrid hose, or a retractable reel if the compressor is fixed.
• Air tools that need oil: an FRL unit, with a separate unlubricated outlet if you also blow down or paint.
• Spray painting: a fine filter-regulator with no lubricator; a gun-mounted regulator helps with fine adjustment.
• Bench or vehicle use: a PU recoil hose keeps a short reach tidy.
• Long runs or cold mornings: hybrid polymer hose, sized up in bore if the run is long.

Care and use tips

• Drain the filter bowl and compressor tank regularly.
• Release line pressure before disconnecting a hose or changing fittings.
• Keep hoses away from hot surfaces and sharp edges.

FAQ

Do I need an air compressor regulator if my compressor already has one?

Many compressors have an outlet regulator but no filter. A filter-regulator adds water and dirt removal.

What size air hose should I get for my compressor?

Match the bore to your tools and the length to your workspace. 10mm (3/8in) suits most workshop use; go larger for long runs or high-demand tools.

Is a retractable air hose reel worth it?

If the compressor stays in one spot, yes: the hose stays off the floor and rewinds after use.

What is the difference between a filter-regulator and an FRL?

An FRL adds a lubricator that oils the air for air tools. A filter-regulator does not, which makes it the right choice for spray guns and blow guns.
