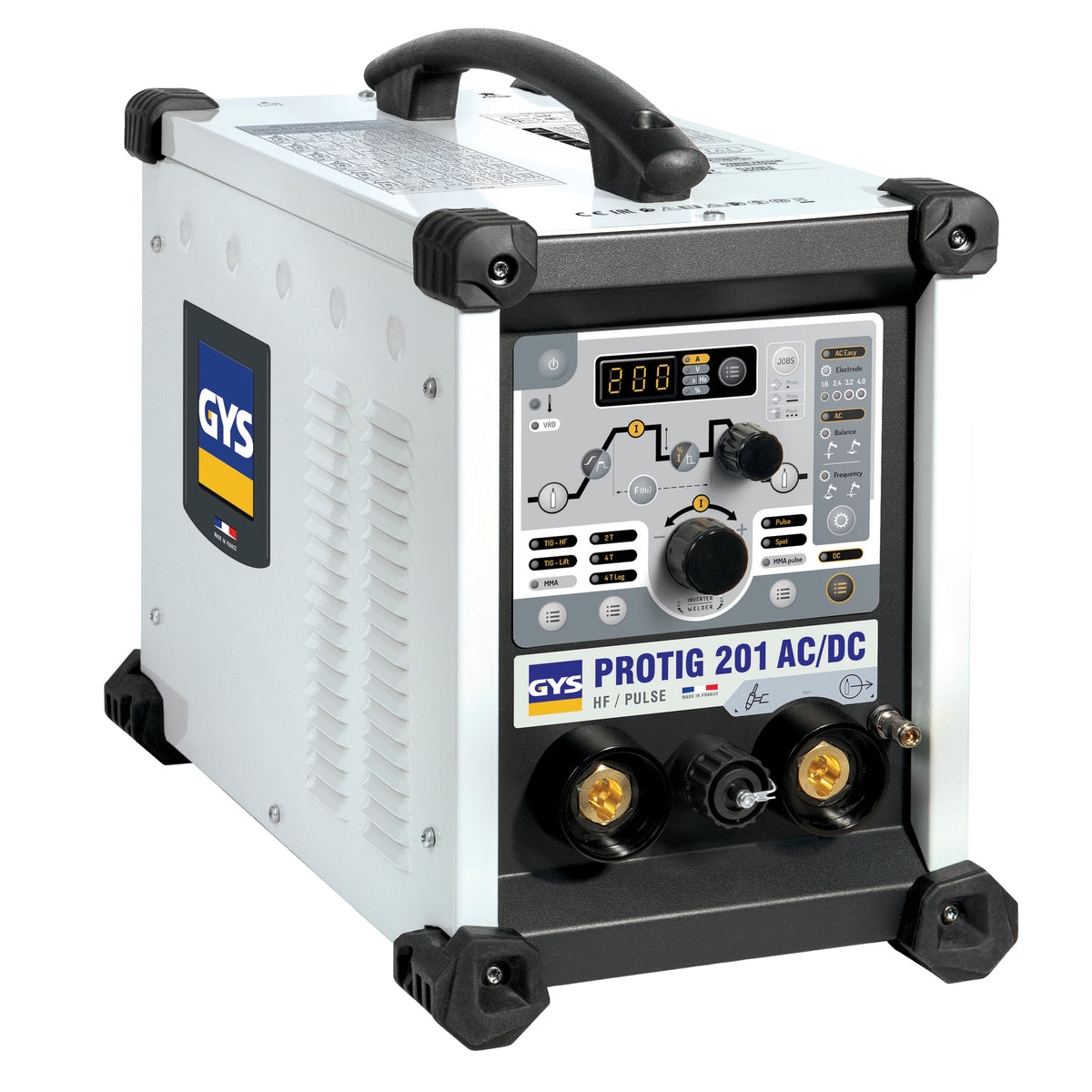

GYS ProTig 201 AC/DC
Buy Now Pay Later available at checkout
The PROTIG 201 AC/DC is the professional TIG welding solution for welding all types of metal up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium). It ensures a very high level of precision in many areas such as fabrication, maintenance or piping.
6 TIG AC/DC PROCESSES
Welding current : 10 to 200 A (TIG AC), 10 to 160 A (TIG DC)
TIG DC - Standard : Ensures a quality weld on all ferrous materials such as steel, stainless
steel but also copper and its alloys, titanium.
TIG DC Pulse : Controls molten temperature, limits deformation and thus allows the assembly
of thin sheets from 0.3 mm.
TIG DC SPOT : Pre-assembles the aluminium parts by tacking.
TIG AC - Easy : Makes the use of the welding machine easier thanks to predefined settings.
The user only selects the diameter of his tungsten electrode on the interface.
TIG AC - Standard : Designed for welding aluminium and its alloys (Al, AlSi, AlMg, AlMn...).
Alternating current provides cleaning of the aluminium for a perfect weld.
TIG AC SPOT : Pre-assembles the aluminium parts by tacking.
2 MODES OF COATED ELECTRODE WELDING
Welding current : from 10 to 160 A (MMA)
• MMA Standard : Accepts basic, rutile electrodes up to Ø 4 mm.
• MMA Pulse : Helps welding in a vertical upright position (nozzles/pipeline).
DESIGNED FOR USER COMFORT
2 types of start-up : HF (without contact) or LIFT (with contact) for electro-sensitive environments.
3 trigger modes:
- 2 times: maintain pressure on the trigger throughout the weld.
- 4 times: to start welding, press the trigger only once and then press the trigger again to stop welding.
- 4T «LOG»: the operator chooses at any time between 2 welding currents by a short pulse on the trigger (hot and cold current).
MMA welding assistance:
- Antisticking : reduces the risks of the electrode sticking if it comes into contact with the workpiece
- Hot Start: Assists in Arc ignition and can be adjusted according to the type of metal
- Arc Force Adjustable: regulates the arc length deviations
VRD (voltage reduction device): the welding current is only delivered when the electrode is in contact with the workpiece (not originally activated).
ROBUST DESIGN FOR ALL ENVIRONMENTS
Reinforced chassis and Anti-shock absorbant protection
• Compact and lightweight design
• Current/Voltage display after welding (DMOS/QMOS)
• Storage of up to 50 programs per process
• Connectivity for remote controls
